High Hardness Heat Resistance Electric Horn Car Speakers

High Hardness Heat Resistance Electric Horn Car Speakers
Price: US $ 1.1-4/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: JD. HL-165 Universal
Horn Base Material And Thickness: 1.0mm Iron
Use Life: 120, 000times
Click Material: Manganese Steel
Horn Color: Black
Warranty: 12 Month
Car Make: Universal
Certificates: E-MARK, CCC, Ts/ISO16949:2009
Diameter: 80mm
Sound Level: 105-118dB
Frequency: 400Hz~500Hz
Type: Electric Horn
Speaker Design: 2-way
Shape: Spiral
Material: ABS
Sound Frequency: High Pitch
Voltage: 12V
Connection Mode: Double Wire
Contact Point: With Contact Point
Energy Exchanging Mechanism: Electrical
Current: 4A

Product Description

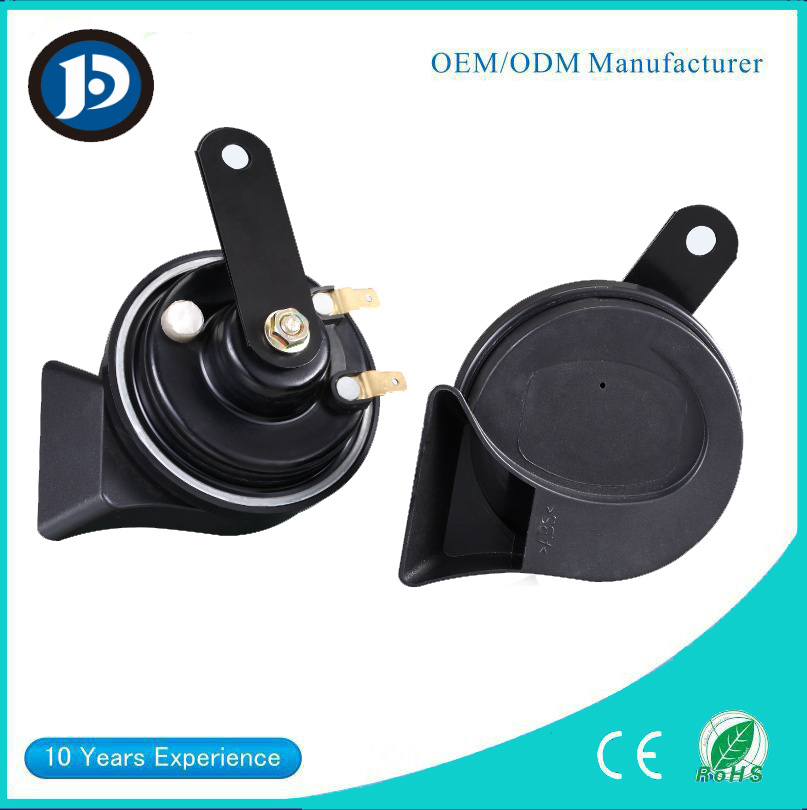

Product show:


Technical parameter:


Details

  Snail Horn

Voltage: (V)

12

Current: (A)

≤4A

Frequency: (Hz)

H=500±30   L=400±30

Sound level: (DB)
105dB-118dB

Diameter: (mm)

ø80

Applicable for cars

Universal

Certified

ISO/TS16949

Remarks:
1. It can be designed with other cars exclusive
2. It is very popular in America, Middle East and Europe (best quality)

3.It's our best quality car horn.It has at least twice life time than ordinary horn(Patent).

4.Sound crisp eleganceLong life,high reliableAnti-jam,SUPER WATER-PROOF(Patent)

14 months warranty, good after service, delivery on time

For more details, please feel free to contact me!



Features:

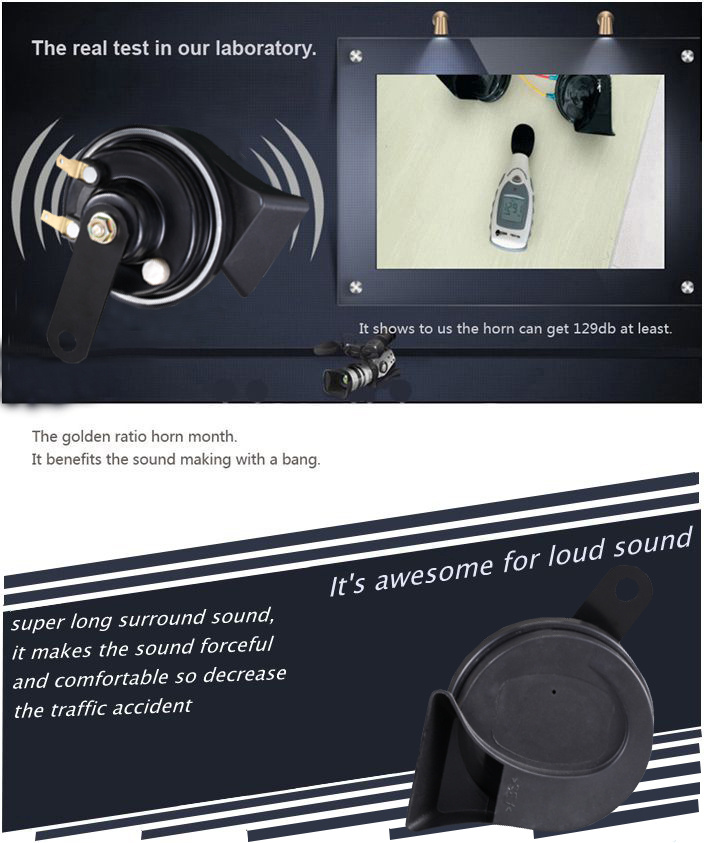

1.The real test in our laboraroy that show to us the horn can get 110db at least.
2.Super long surround sound,it make the sound powerful and comfortable so that decrease the trafficaccident.
3.We used the imported high quality manganese steel to make the soundboad so that can make the fullest possible "BABA~~" sound.
4.We use the most advanced Teflon coat technology.I can be dust-proof and water-proof effectively(We must inform you that there are not have any horn factory can make a universal horn that all waterproof).It prolong the lifetime of the horn effectively.

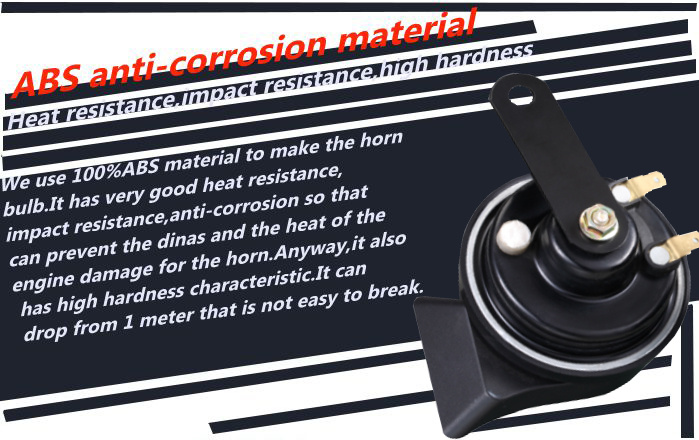

5.We used the 100%ABS material to make the horn bulb.It has very good Heat resistance,impact resistance,anti-corrosion so that can prevent the dinas and the heat of the engine damage for the horn.Anyway,it also has high hardness characteristic.It can drop from 1 meter that is not easy to break.


What should I note when I am Installing and using?
a. Snail down or 45 degree Angle installation, Prevent water  into coiled directly
b. If you are not special peason , dont change the angle degree of Steel Support,or it will change the Original air gap
c. mounting torque of Steel support is between 6Nm to 11Nm.
d. The horn support should be mounted to Solid surface to avoid resonance.
e. In order to avoid contact with other parts of the car,The horn should be connected with horn support and installed to wide and Ventilated place.
f. Nonpolarity requirements for this product, the connected place of the wire should solid enough, Double horn should installed on solid part of car body in parallel way.
g. Keep away from car motor and much Radiation place. Not be too low mounting.
h. Don't keep the horn on for 60 seconds, or it will lead to the coil burned down.
i. Using copper wire, more than 1.5mm for wire Diameter, the wire length should less than 4m.
j. Standard mounting Voltage, input working current more than 30A,12V horn voltage: 9-14.5V


Our company is a professional manufacturer and exporter that is concerned with the design , development and production of auto parts , we are
fully committed to producing technologically advanced auto parts.

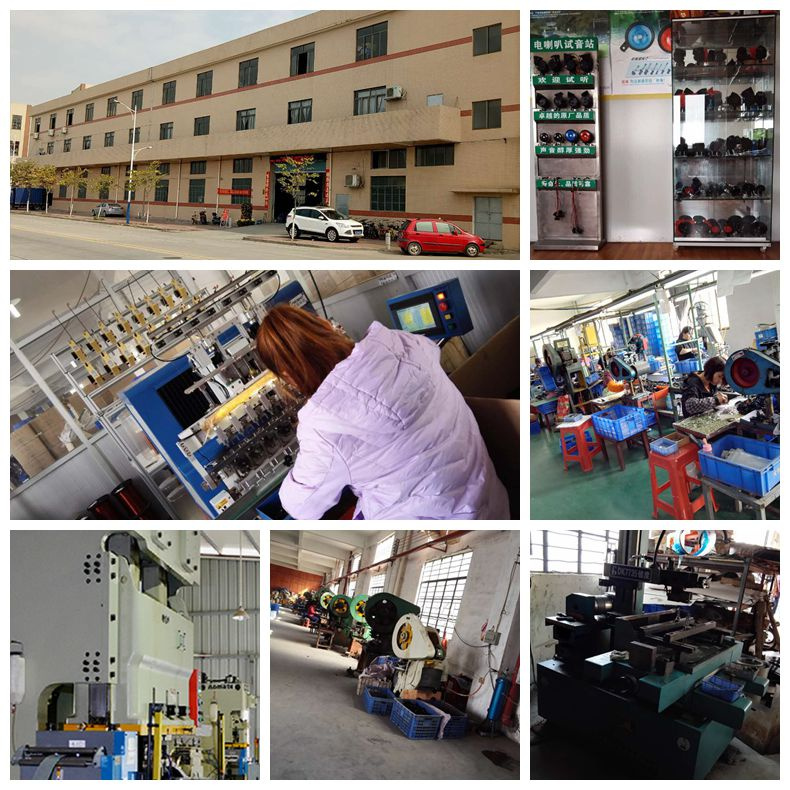

Factory show:

Certifications:


Exhibition:


Contact us:
Guangzhou Jindong Electronic Technology Co.,LTD
Add: No.1,Gudong Industrial Zone,Gulong Road,ShawanTownship,Panyu District,Guangzhou

Benki Huang


Tel:+86-020-34738085
Mob:+86-13922729780
Fax:+86-020-84737552










Established on October 8th, 2006, JinDong Electronics Technology is a provincial level private enterprise that specializes in the research & development and manufacturing of electric horn products for all kinds of motor vehicles. It is legally granted the patent rights for the registered trademarks including "Jiuge", "Fenghuolang", "Mingwang", "Dianbang" and "Dacheng". Adhering to the business philosophy and service purpose of "honesty-based and service first", JinDong becomes the industry's well-known enterprise both at home and abroad, and has successfully entered the international market.

Staffed with 125 employees, among which are 8 senior technical management personnel, the factory covers an building area of 3600 square meters. The electric horns it produced consist of 3 series, where the snail series owns more than a dozen of models, and the basin type electric horns, with a annual production capability of 3 million units, also have more than a dozen models of auto-tailored products. These products have been sold to all over the world, and in particular, they occupy a large market share in the after-sales market of several domestic car brands, which makes JinDonf become the designated supplier of popular brands. Its products, whereever reach, have been highly praised by customers. JinDong has passed the ISO2000 quality attestation, European E-MARK, and the China Compulsory Certification. With large production scale, strong production technology development capabilities, advanced automatic production equipment, as well as perfect quality control means and the networked sales service system, JinDong focuses its spirit of serving customers on product quality, and make its goal to satisfy customers demands from time to time. JinDong sincerely welcomes both old and new customers to join to explore new opportunities and development.
