Good Quality DTH Drill Hammer Tools for Mining Blast Rock Hole

Good Quality DTH Drill Hammer Tools for Mining Blast Rock Hole
Price: US $ 125-130/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: HWH90
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
DTH Hammer Type: Hwh90
Hole Range(mm): Dia.90-100
Mantle Diameter: Dia.80mm
Length(Less Bit): 795mm
Weight(Less Bit): 22kg
Working Pressure: 0.5-0.7MPa
Air Consumption: 5 Bar
Impact Frequency: 900/Min
Using Drill Pipe Specifications: Dia.60mm , Dia.50mm
Type: DTH Drill Hammer
Hammer Material: Carbide
Application: Mine ,Quarry for Blast Rock Hole
Brand: Hongwuhuan
Handle Material: Carbide

Product Description

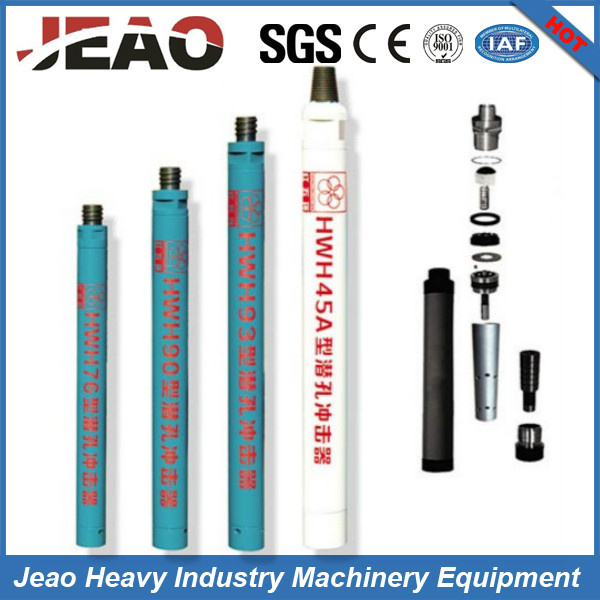

Good Quality DTH Drill Hammer Tools For Mining Blast Rock Hole







Specification of DTH Drill Hammer

DTH hammer typeHWH90HWM93HWH76HWH45A
Hole range90~100mm90~100mm76mm45mm
Mantle diameter 80mm80mm66mm99mm
Length(less bit)795mm870mm765mm1030mm
Weight(less bit)22kg21kg15kg39.20kg
Working pressure0.5~0.7Mpa0.7-1.0Mpa0.5~0.7Mpa0.5~2.5Mpa
Air consumption5m3/min6m3/min4m3/min(6,10.8,15)M3/min
Impact frequency900/min1100/min820/min1600/min
Using drill pipe specificationsΦ60  ,Φ50Φ60 ,Φ50Φ50  ,Φ42Φ110~135

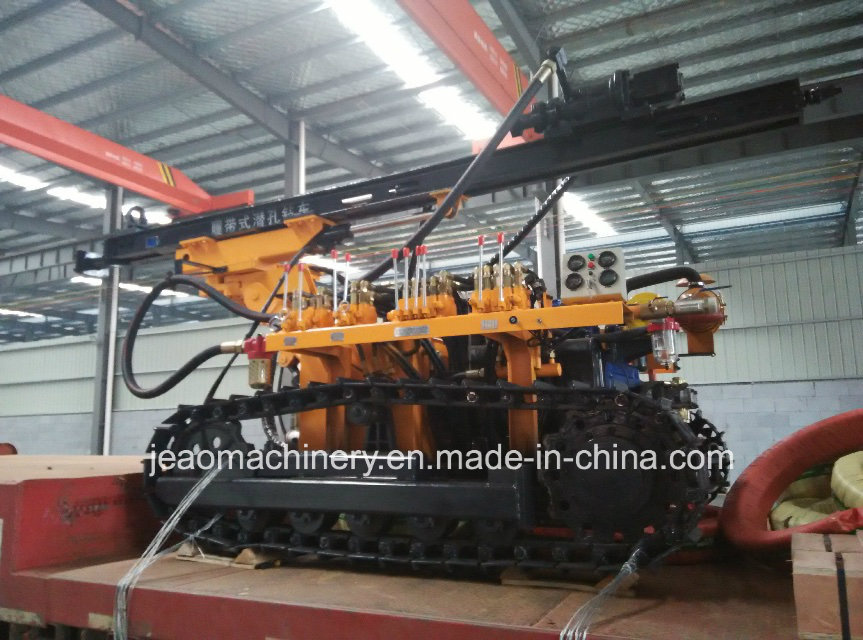

Used Crawler Drilling Rig :



A Company You Can Trust:

Located in Xinxiang City, Henan Province, China, Henan Jeao Heavy Industry Machinery Co., Ltd. is a professional manufacturer of screw(piston) air compressors, crawler drilling rigs, pneumatic tools, mining construction machines, crushers, etc. We have 12 years' experience in mining construction machinery and have a good reputation in this field. Our products have a vast market in foreign countries such as Nigeria, Zambia, Zimbabwe, Congo, Kenya, USA, UK, Sudan, and other countries and regions.

Quality and Safety:

We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed QC, ISO & CE certifications.

Your Success, Our Glory:

Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
