Full Hydraulic Power Head Crawler Drilling Rig Machine Made in China

Full Hydraulic Power Head Crawler Drilling Rig Machine Made in China
Price: US $ 28600-35000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: MDL-135D
Application: Single, Double and Triple Tube Jet Grouting Drilli
Electric Motor: 55+18.5+2.2kw

Product Description

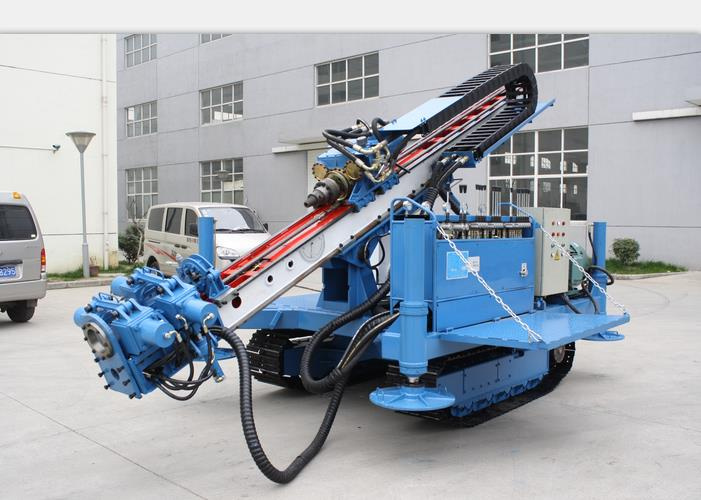

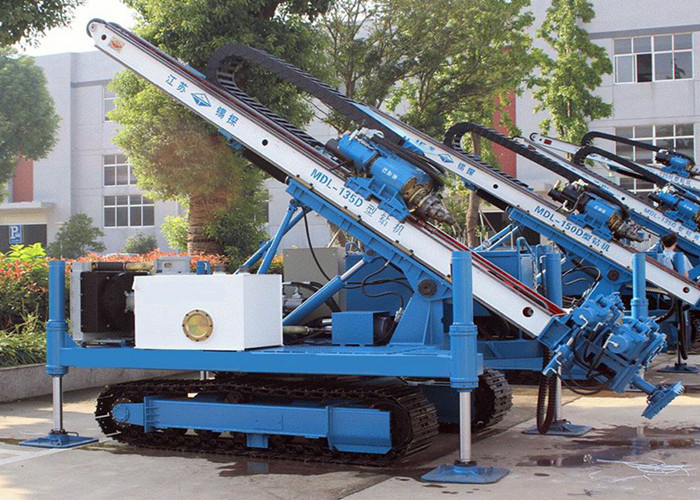

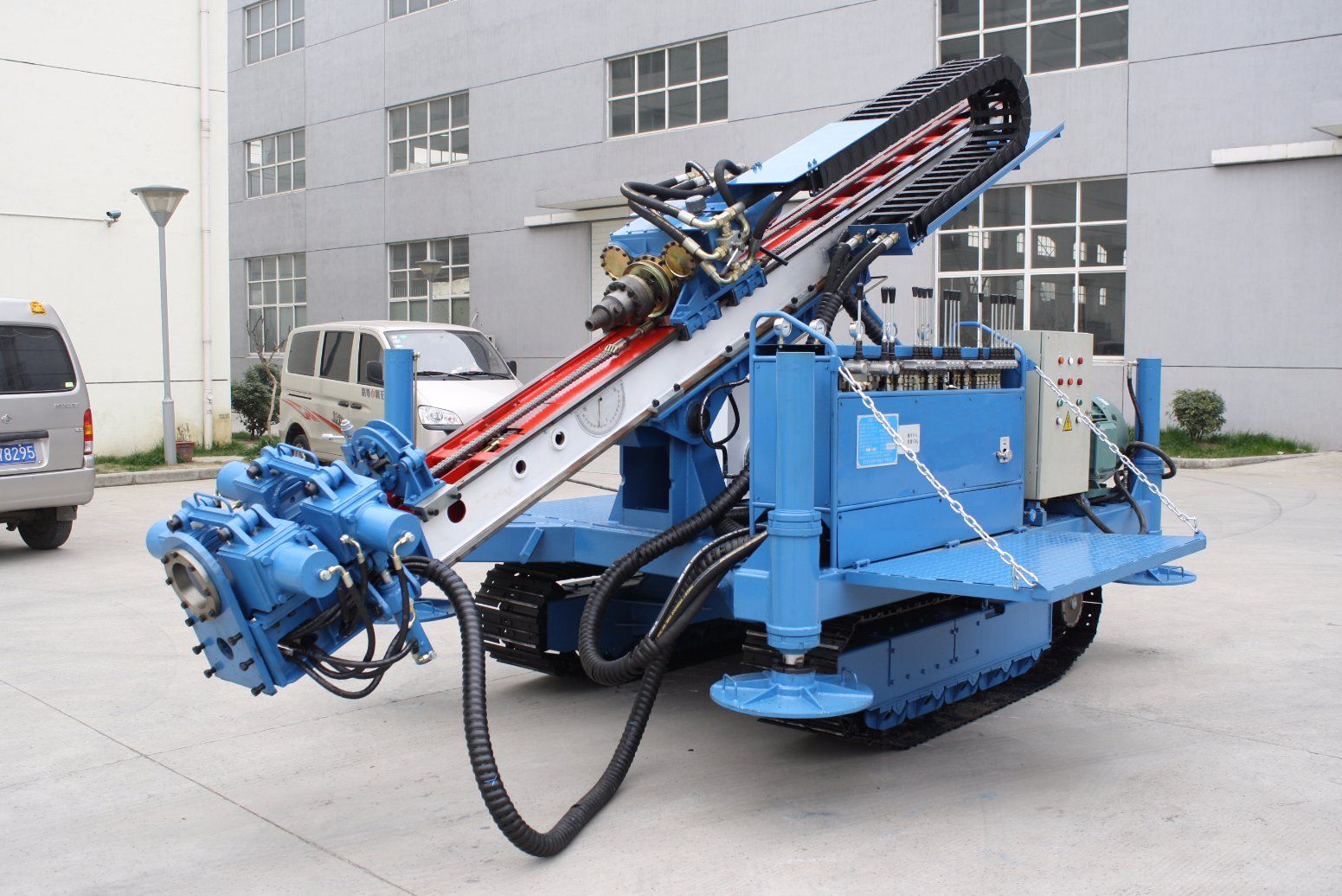

                                                             MDL-135D Foundation Anchor Drilling Rig


1. MDL-135D drilling rig is a kind of full hydraulic power head crawler drilling rig. Its drilling depth is 100-140m, and drilling     diameter150-250mm.
2. The great rotary torque and long feeding stroke distance of the drilling rig make the speed of borehole faster, the disposal       capability of accident better and efficiency of drilling work higher.
3. The equipment is mounted on the crawler with the turning platform mechanism which makes the moving and walking           more and more convenient.
4. This rig can be used for single,double and triple tube jet grouting drilling,and can be used with double casing drilling.

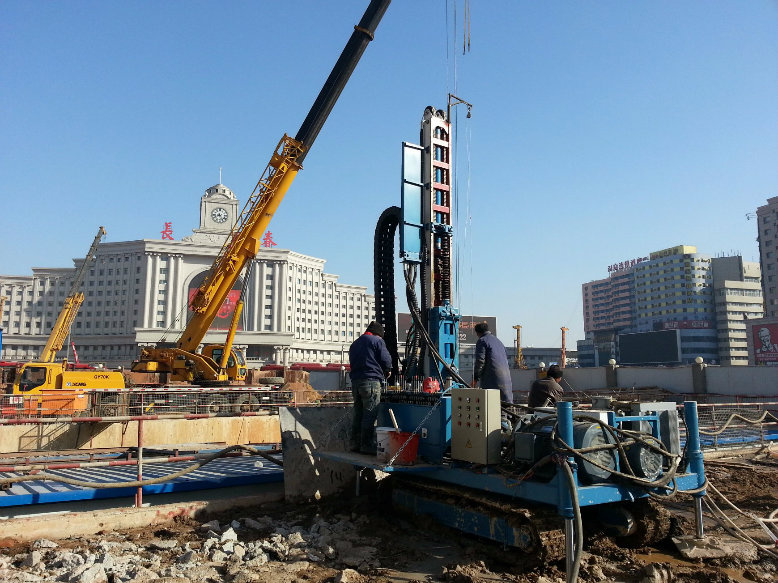

1. subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2. Single,double,triple Jet grouting
3. This engineering drill rig can be used for drilling geothermal hole and well.
4. The blast hole,the anti-floating anchoring hole .










Hole depth100-140m
Rod dia150-250mm
Hole angle(°)0-90°
Output rotary speed of power head10/20/25/40/50/60/70/100/120/140r/min
Stroke of power head3400mm
Output torque of power head6800N.m
Stroke of slide frame900mm
Lifting force of power head65KN
Feeding force of power head33kN
PowerElectric motor:55+18.5+2.2KW
Weight6000KG
Dimensions (L×W×H)5400×2100×2000mm



















Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.

Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.

We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.

Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
