for Ford 6.0L Power Stroke Engine Heui Injectors Test Bench

for Ford 6.0L Power Stroke Engine Heui Injectors Test Bench
Price: US $ 2700-3550/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: hus-1001
Manufacture: Fotma
Engine Type: Diesel
Test Injector: Heui Injectors
Heui Injector Type: Caterpillar, Ford
Transport: by Air, DHL, FedEx, by Sea
Certification: ISO
Update Method: by Hard Disk

Product Description

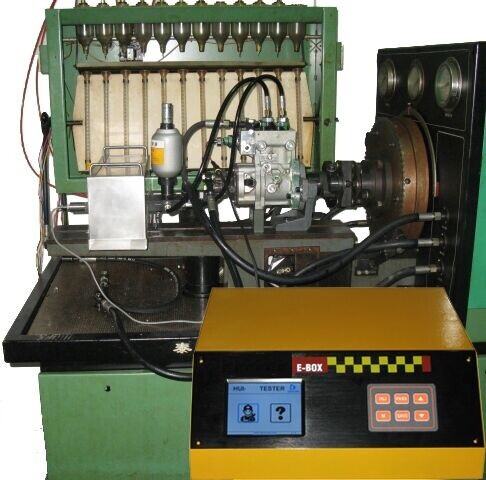

If you have traditional test bench, you can choose our added-on type HEUI Tester, its functions is the same as HEUI system test bench, but the price will be cheaper.

Application:
The HEUI test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
·   Navistar T444E, as Ford 7.3L Power Stroke Engines
·   Navistar DT466E
·   Navistar I530E
·   Caterpillar 3126B
-Adapting Kits for Testing One Ford 6.0L Power Stroke Engine HEUI Injectors
-Adapting Kits for Testing One CAT C7/C9 HEUI Injector
-Adapting Kits for Testing One CAT 3408 HEUI Injector
-Add-on type can test 1pcs injector at the same time

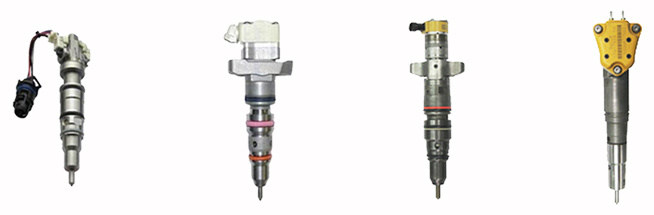

HEUI  injectors
CAT 3126B, Ford PowerStroke 7.3L
CAT 3408
CAT HEUI-B injectors
CAT C7
CAT C9
Ford PowerStroke 6.0L injector, (4-pin connector)
Features

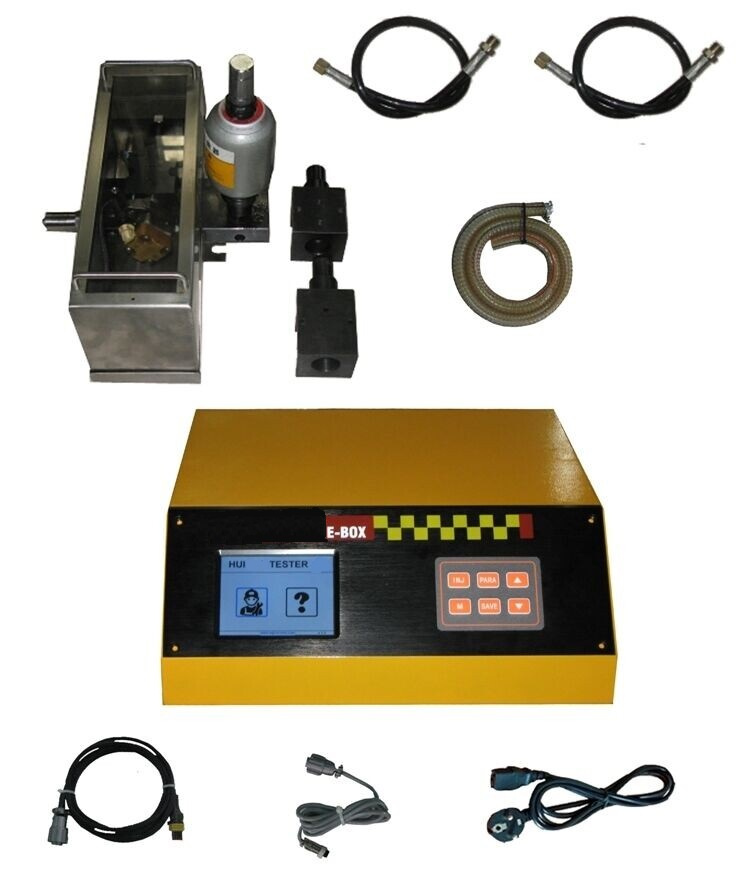

Injector testing device
Modular design,easy to mount the adapter for various type of injectors
Internal hydraulic actuation oil rail and injection oil rail
Pressure sensor on the device
Single type of test oil for both hydraulic actuation and fuel injection
Using a traditional Diesel pump test bench to drive a Bosch CP3 or CP2.2 pump as hydraulic actuation oil source

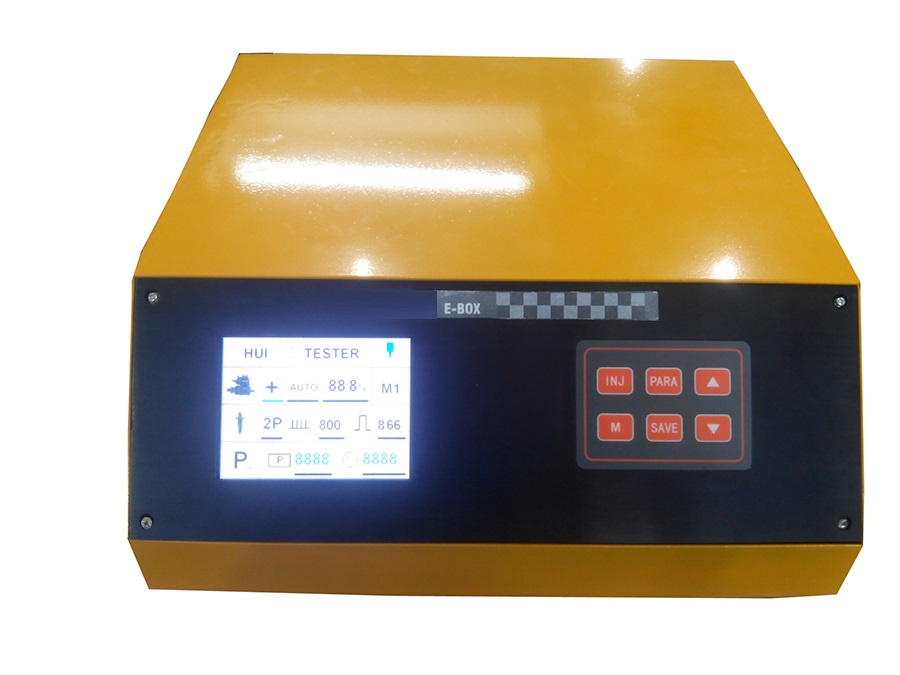

Controller
Common rail pump control
Adjusting PWM signal of the pump inlet flow regulator to control hydraulic actuation pressure
Define polarity of the pump
Pressure control modes
♦ Manual
♦ Automatic
Injector control
Injection frequency, 10 - 1200 injection/min
Injection duration,0 - 6 msec
Single key to switch injection start or stop
To ensure a safety operation, when injection is switched OFF, the pump load will be cut to zero immediately, while let injector working continuously until hydraulic actuation pressure dropped below 10bar, then shut down injector signal
Over pressure protection for hydraulic actuation flow
Friendly, easy to use 6-key mini-pad and display screen
Special tools for repairing all kinds of HEUI injectors
