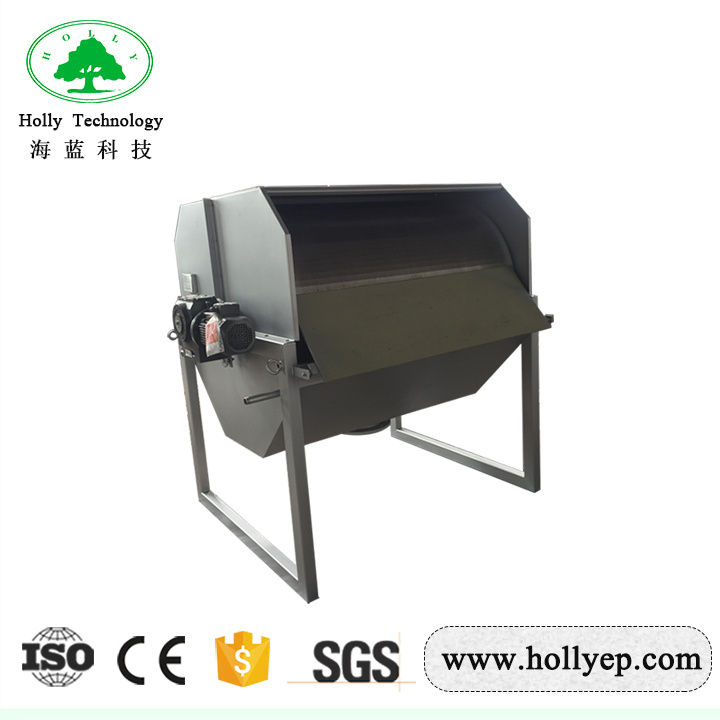

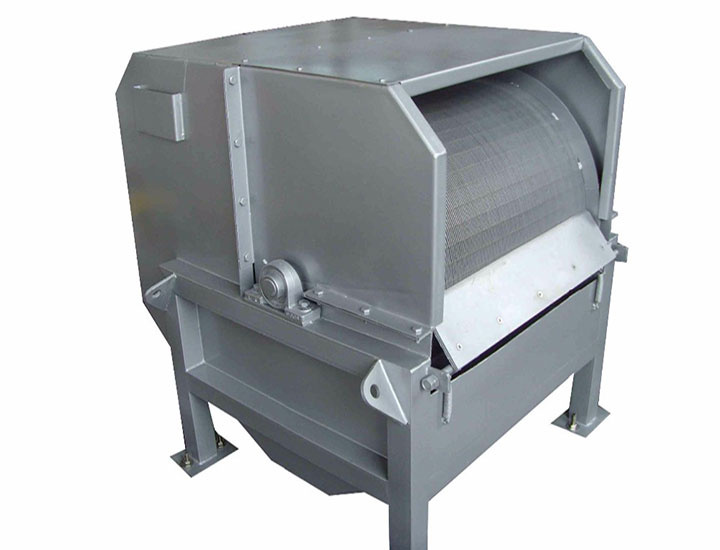

Fish Farm Machine Rotary Drum Filter Screen for Koi Pond

Fish Farm Machine Rotary Drum Filter Screen for Koi Pond
Price: US $ 2000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: HLWLW
Material: SS304 or SS316L
Motor Brand: Customized
Application: Water Treatment
OEM: Yes
Warranty: I Year
Color: Sliver Ect
Width Of Grid: 1-5m
Method: Physical Treatment
Usage: Industrial

Product Description

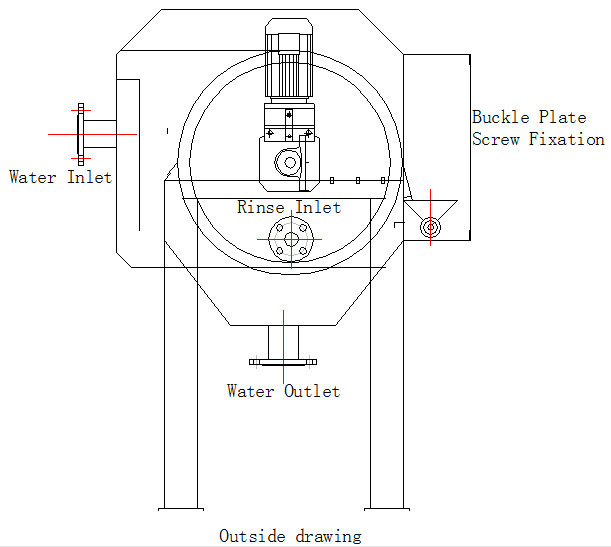

Aquaculture rotary drum filter for industrial wastewater is composed of a case made up of stainless steel plate and section bars. The stainless steel filter, whose surface is made up of a stainless steel "v" profile wedge wire type winded up as a spiral, rotates inside the case. The distance between each coil is the same as the desired filtering slot.




Technical Parameters

ModelScreen sizeDimensionsPowerMaterialRemoval rate
Solid size
>0.75mm
Solid size
>0.37mm
HLWLW-300Φ300*500mm
Space:0.15-5mm
760*700*1200mm0.55KWSS304






95%







55%
HLWLW-400Φ400*600mm
Space:0.15-5mm
860*800*1300mm0.55KWSS304
HLWLW-500Φ500*750mm
Space:0.15-5mm
1050*900*1500mm0.75KWSS304
HLWLW-600Φ600*900mm
Space:0.15-5mm
1160*1000*1500mm0.75KWSS304
HLWLW-700Φ700*1000mm
Space:0.15-5mm
1260*1000*1600mm0.75KWSS304
HLWLW-800Φ800*1200mm
Space:0.15-5mm
1460*1200*1700mm1.1KWSS304
HLWLW-900Φ900*1350mm
Space:0.15-5mm
1600*1300*1800mm1.5KWSS304
HLWLW-1000Φ1000*1500mm
Space:0.15-5mm
1600*1300*1800mm1.5KWSS304

Features

1. The material is high-strength and corrosion-resistant stainless steel; Less used field area; Convenient construction; It can be directly fixed with expansion bolts without channel construction; Inlet and outlet water can be connected with pipes.
2. The screen will not be blocked by waste solid because the machine is inverted trapezoid cross section
3. The machine is controlled by adjustable-speed motor, which can maintain optimum working condition according to water flow.
4. Special washing device can brush away the impurities on the surface of screen, after twice internal brush, it will achieve the best cleaning effect.


Application

Water separation treatment of industrial waste water in these industries
Paper Mills
Textile and Dyeing
Food Industry
Chemical Industry




Packing
