Factory Price High Quality Plasma Cutting Machine/Metal Cutter

Factory Price High Quality Plasma Cutting Machine/Metal Cutter
Price: US $ 3000-10000Set
Min Order: 1Set
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: HT-PD1530
Name: Plasma Cutting Machine
Model: Ht-Pd1530
X,Y Working Area: 1500*3000mm
Z Working Area: 150mm
Lathe Bed: Very Thick Steel Structure
Machine Power: 8.5kw
Working Voltage: 380V/50Hz Three Phase
Maximum Cutting Speed: 8000mm/Min
Plasma Power Supply: Lgk 63A Plasma Source
Working Temperature: -10-60 Degree Celsius. Relative Humidity, 0-95%.

Product Description

                    Factory Price High Quality Plasma Cutting Machine / Metal Cutter

1.Machine introduction:
1.If use the plasma cutting machine to cut the the thick meal, have to use the arc Torch height adjust system, while our height adjust system use the high sensor, one minute can send out 12,000 signal per minute, while other height adjust system usually send out 10000 signal per minute, so our cutting quality more better than other factory and cutting speed a litter faster than the same power plasma source.
2.We have detailed teaching video in it, it will step by step and like hand by hand to teach how to operate machine and software ,etc. so even no English and freshman will learn machine using faster and easier; while most other factory no teaching video.
3.in the machine we equipped the two fan for take the cutting smoke out from the room, This way, will efficiency to let the workshop in the good environment.  While other factory does not have this fun or only have one.

2.Technical parameter :
ModelHT-PD1530
X,Y working area1500*3000mm
Z working area150mm
Packing dimension2200mm*3900mm*1550mm
Lathe bedVery thick steel structure
Machine Power8.5kw
Working voltage380V/50HZ three phase
Reposition precision0.02mm
Processing precision0.1mm
Maximum cutting speed8000mm/min
Torch Height control modeAutomatic High sensitive THC
Plasma power supplyLGK 63A Plasma source
Cutting thicknessMax 12mm mild steel,max cut 6mm stainless steel
Control systemMicrostep STARFIRE
MotorsStepper motor
SoftwareStarCAM
Weight2150KG
Plasma Air PressureMax.0.8Mpa
Working Temperature-10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension7.0Inches

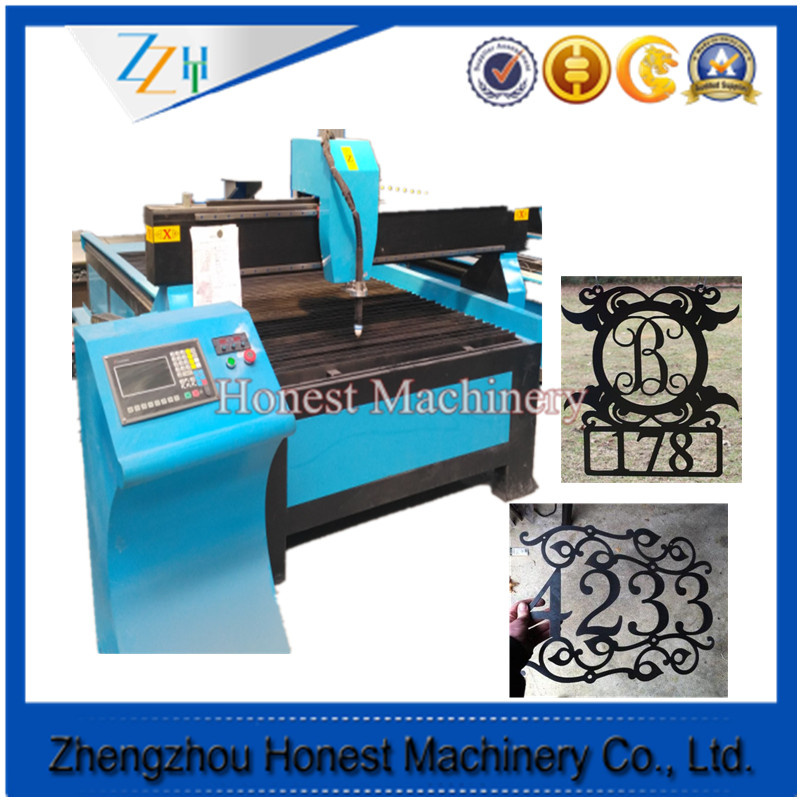

3.Machine Photo


4.Company Certificate:


5.Packing&Delivery:


6.Our Customer:


7.Contact information
If you need further information, please contact us freely, we will do our best to cooperate with you.


Our company, Zhengzhou Honest Machinery Co., Ltd., is the professional manufacturer and exporter of mechanical equipment. Our factory was established in 1998. In the past, many companies in China bought machines from our company, and resold them in the international market. In order to develop our own international business, we established our own exporting company in 2013.

Our main products include food processing machines, nut processing machine, packing machines, microwave equipment, drying machines, cleaning & tidy machinery, woodworking machines, etc.

Our machines are complied with international quality standard and are greatly popular in various markets around the world, part of our machines have got CE certificate. Our well-equipped facilities, complete after-sale service system and excellent quality control system on all stages of production enable us to satisfy customers from different countries. Now our sales network have reached Europe, America, Middle East, Southeast Asia, Africa, etc.

We are gold member of Alibaba. Our company also have passed the supplier assessment of German TUV Rheinland and Swiss SGS.

The society development and industry competition make us enter into the age of product homogeneity. Hento Machinery can stand out from fierce market competition worldwide, it benefit by the trust and identity of new and old customers. Adhere to the mission of quality is fundamental, service is the key, Abide by the belief of integrity-based, down to earth, we will continue as before, keep our complete after-sale service system and excellent quality control system. We sincerely welcome customers at home and abroad to visit us to discuss cooperation and seek common development. We believe our company is your most reliable partner and friend!
