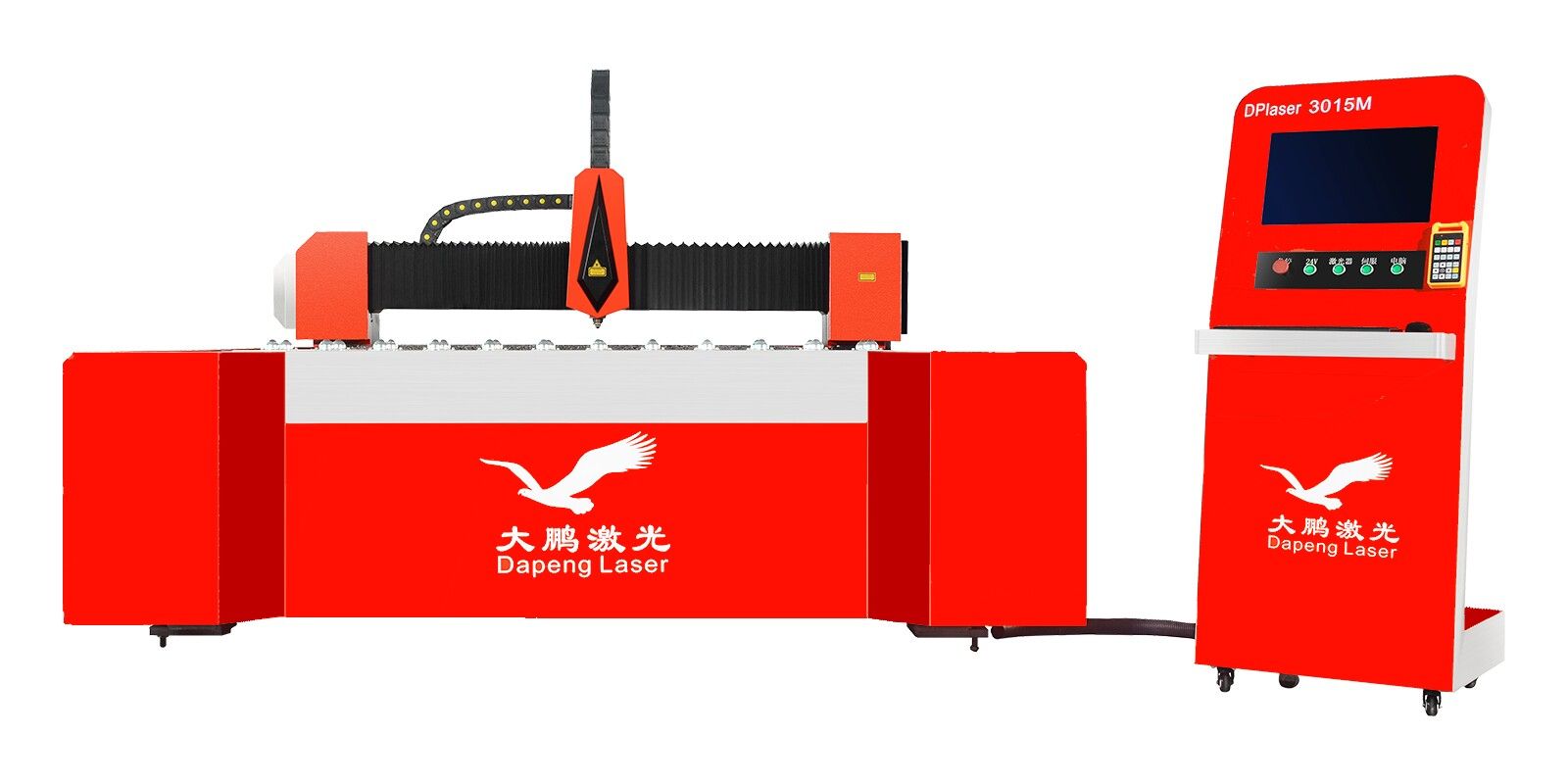

Dpl China Supplier Metal Laser Cutting Machine/Fiber Metal Cutter

Dpl China Supplier Metal Laser Cutting Machine/Fiber Metal Cutter
Price: US $ 82500/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: 341
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Machinery & Hardware
Type For Cutting Machine: Laser Cutting Machine
Certification: CS, SGS, ISO 9001:2008
Automation: Automatic
Condition: New
Type: High-Power Laser Cutting Machine
Cutting Depth: 0.2mm---8mm
Outline Size(mm): 4270mm*2420mm*1750mm (L*W*H)
Operational Temp Range: 10 ~ 40oc
Electrical Requirements: 380V/50Hz.60AMP

Product Description

DPL China Supplier Metal Laser Cutting Machine/Fiber Metal Cutter



DP FIBER LASER CUTTING ADVANTAGES:
1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal


SPECIFICATIONS:

Model
DPLC3015-500IDPLC3015-1000I
Medium of laserSemiconductor pump continuous ytterbium doped fiber
Laser wavelength 1070nm
Laser output power500W1000W
Cutting area(mm)(L×W)      3000mm×1500mm
Max cutting speed(m/min) 18 m/min24 m/min
Min line width< 0.1mm< 0.125mm
Cutting depth 0.2mm---5mm       0.2mm---8mm
Driving WayImported servo motor
Tranmission WayY-axis imported gear rack double driver,X-axis imported gear rack
Operational Temp Range10 ~ 40ºC
Electrical Requirements380V/50Hz.60Amp
Cooling ModeWater cooled
Continuous working time24 hours
Warranty:2 years on laser source
WeightAbout 3000kg
Outline size(mm)       4270mm×2420mm×1750mm  (L×W×H)

APPLICABLE MATERIALS:

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

APPLICABLE INDUSTRY:

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.


Company profile


Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and

servicing products and systems for laser marking
, laser welding, laser cutting and engraving. The company provides

equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military,

semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets.

With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard

and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker

systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last

10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil,

Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will

have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost

effectiveness, and technical support.


China. Last year 2016 we sold more than 5000sets of laser systems, about 80% are sold in domestic market, and others

we sold to America, Spain, Poland, India, Egypt and many other countries.


Made-in-china Homepage- http://dplaser.en.made-in-china.com/

FacebookPage- https://www.facebook.com/shenzhendapeng/


Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
