Diamond Cutting Wheel Repair Rim Polish Machine Tools with 6 Jaw Chuck

Diamond Cutting Wheel Repair Rim Polish Machine Tools with 6 Jaw Chuck
Price: US $ 13000-15000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: AWR28HPC
Product Name: Wheel Repair Machine
Controller: PC Control or CNC
Color: Black or Blue
Machine Type: Flat Bed Lathe
Voltage: 3 Phase 380V or Your Request Voltage
Cutting Effect: Rainbow Line Effect or Mirror Effect

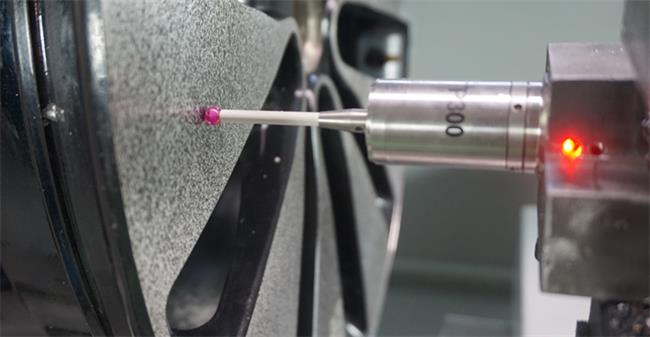

Detection Way: Touch Ruby Probe System
Cutter: Special Design Diamond Cutter
Oversea Service: Offer Oversea Service
Clamping Type: 3 Jaws Chuck
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

Diamond cutting wheel repair rim polish machine tools with 6 jaw chuck

A. Standard configuration:

      1.  Wireless key&mouse 1 set                          2.  Diamond cutter 1 set inner

     3.  Diamond cutter 1 set outer                          4.  Special ordered soft jaws 1 set

     5.  High precision prob system 1 set                6.  4 station tool which can adjust X stroke

     7.  light system                                                    8.  Automatic lubrication system

     9.  Cooling system(standard)                           10.  Full cover safety door

     11.  Tool case                                                      12.  Training videos
 B.Specifications

ITEMS

                                        AWR28H-PC

Max. swig over bed (mm)(inch)

Φ770(30')

Max. Diameter of wheel(mm) (inch)

Φ710(28')

Max. Stroke of the X-axis(mm)

390

Max. Stroke of the Z-axis (mm)

880

Width of the rail (mm)

300

Length of the rail (mm)

1320

Size of the three-jaw chuck (inch)

13'

Range of spindle speed (RPM)

50~2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ82

Taper of spindle bore

1:20(Φ90)

Taper of spindle nose

A2-10

Adjustable stroke of carrier in X direction

100mm

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

    (Z) long    0.001mm,    (X) cross   0.001mm

Moving speed of post

    (Z) long     8m/min,     (X) cross    6m/min

Motor power

7.5KW

Machine size

(L/W/H) (mm)

2200/1620/1870

Package size

2300/1720/2170

Net weight

2400KGS

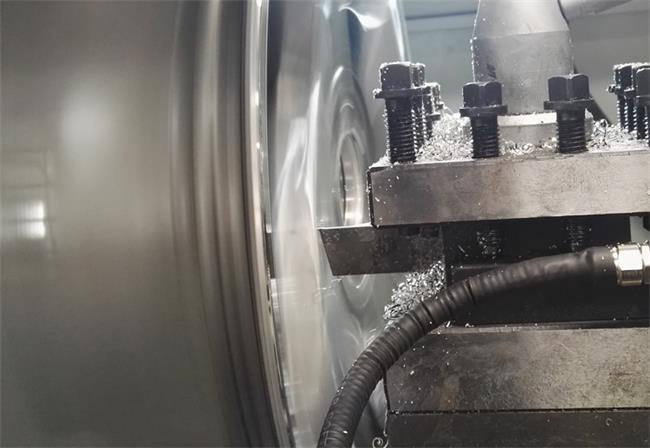

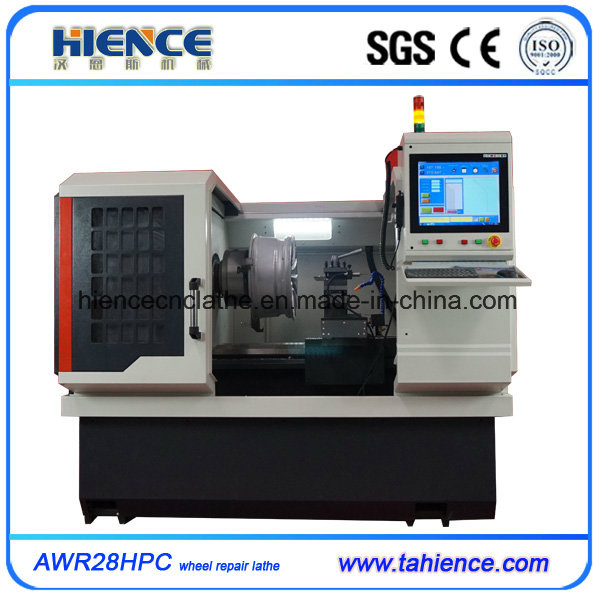

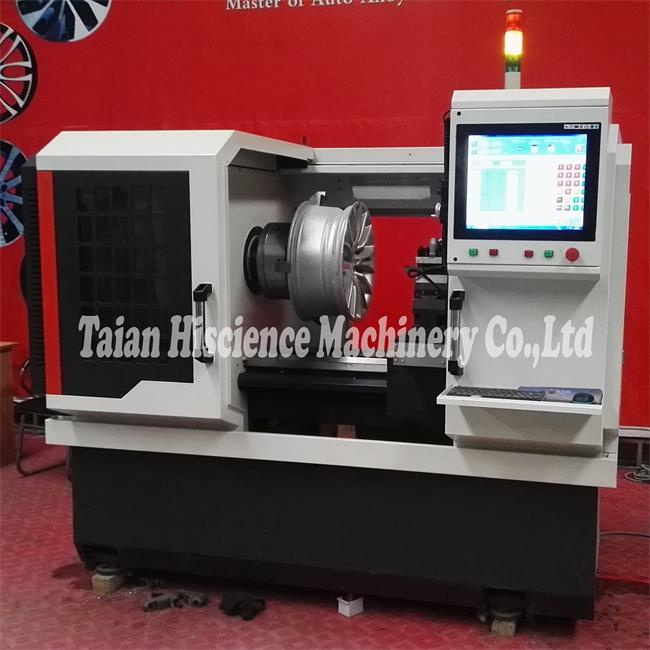

 C. Pictures of AWR28H-PC





Company information






FAQ for PC wheel repair machine


1)Q: What is PC Alloy wheel repair machine?
A: PC alloy wheel repair machine is developed based on CNC wheel repair machine for alloy wheel repair
or refurbishment. PC machine adopt 17'' muti-function touch screen industrial PC, can opereate easier
and high efficient. We have improve the performance and add more function on the machine.
2)Q: What Max wheel size the wheel machine can cut?
A: We have many model machine can meet different customer's request. It is no problem for most of
wheel size 22'', and can up to 32''.
3)Q: Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We have self
developed professional wheel repair software, can repair all wheel and can realize rainbow line effect.
4)Q: If your machine all steps are operated on machine, not need go to computer?
A: Detection, optimization and cutting can be finished in one system in a time.
5)Q: Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training
can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6)Q: Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse
are set up and the mouse can be used together with the touch screen. The customer can establish
their own database of different models of wheels and the saved data can be used in the cutting of
same model.
7)Q:What is your service for the machine.
A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can
contact with our company to start the after sale service.The software support remote upgrade, enjoy
life free upgrade to the latest version
.
Please contact Betty Liu


Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.

We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.

Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.

CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.

The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.

The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.

Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
