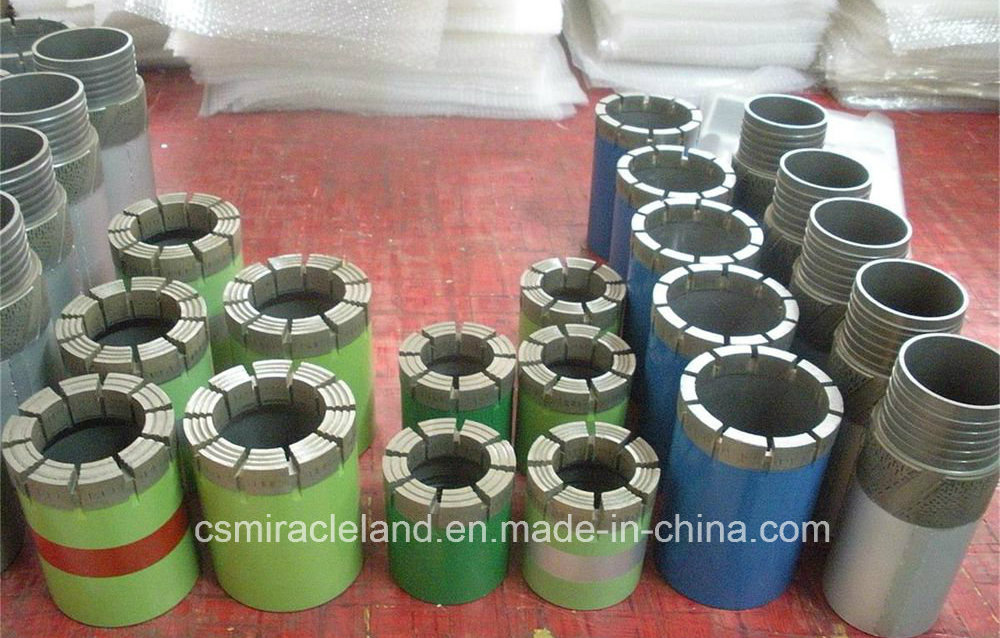

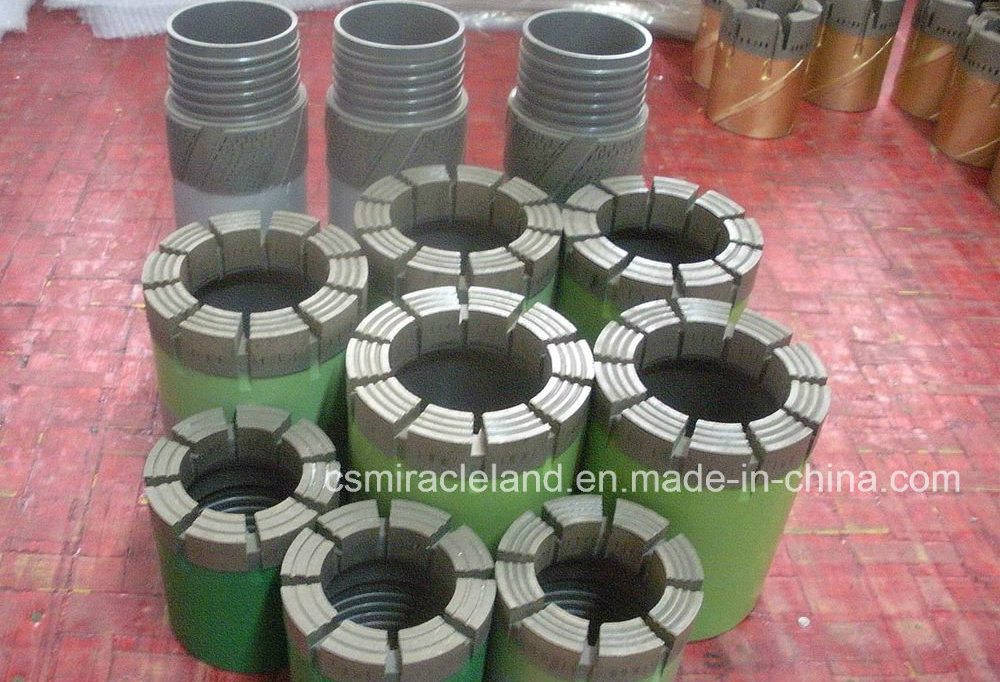

Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)

Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)
Price: US $ 60-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: AQ BQ NQ HQ PQ B T TT T2 T6 T6S LTK WG WF MLC.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Matrix Height: 6-14mm
Condition: New
Standard: Boart Longyear Standard
Quality: High Quality
Type: Core Drilling Rig
Use: Core Drill, Prospecting, Exploration

Product Description

1. full Q series and T series drilling sizes (B,N,P,H).

2. various waterways design.

3. long bit life and good performance.

4. cost effictive;

Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.

Crown Height:
We could offers crown impreg depths of  9mm, 12mm, 14mm and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

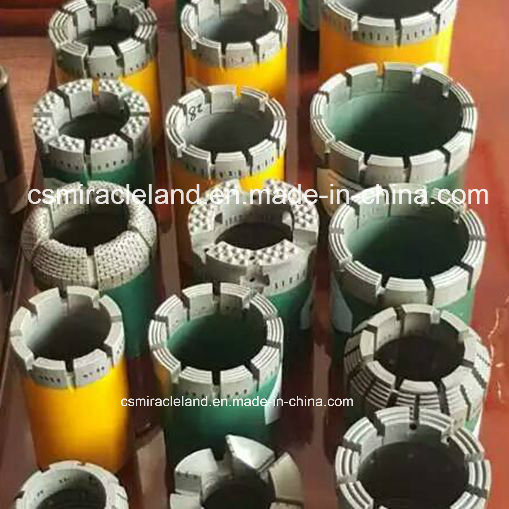

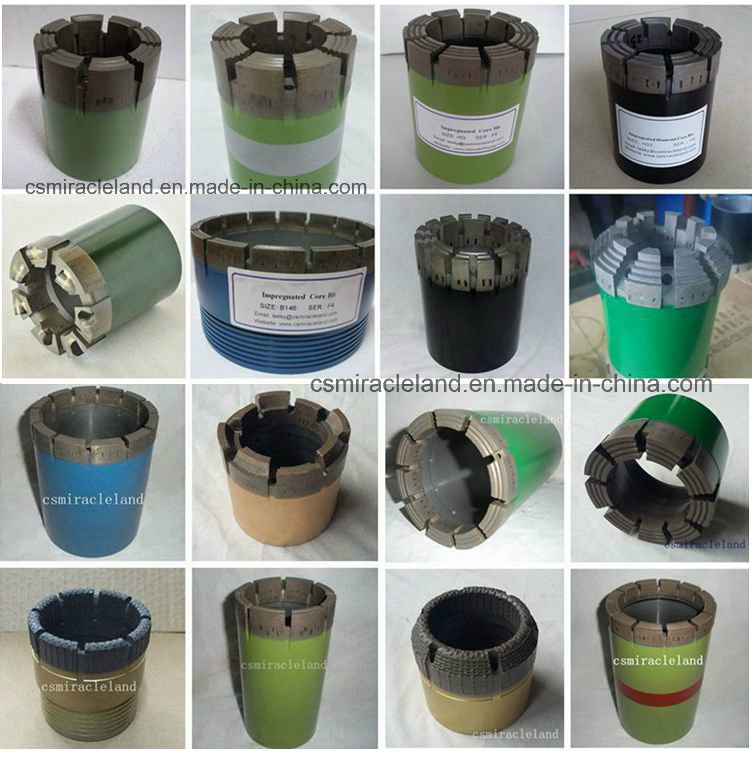

The choice of the diamond bit crown shape:

W Profile
Suitable for drilling hard dense formations with high penetration rate.

Semi-Round Profile
Impregnated bits with this profile are recommended for use in highly fractured formations with good drilling stability. Surface set bits of this style have a long bit life and the matrix is not easy to be damaged.

Flat Profile
It's suitable for various rocks, often used in impregnated casing bits, casing shoes as well as the bits with very hard matrices(e.g. F1, F2).

Cross Profile
It's especially designed for ultra-hard formations, such as granite (hardness 8-9), ganister, quartzite, siliceous limestone, chert, etc.

Multi-Step Profile
Multi-Step type impregnated bit are suitable for soft to medium hard formations and alternating hard-soft formations. With very good drilling stability, it makes the borehole not liable to deflection and the penetration fast. This profile is also often adopted in thick-kerf surface set core bits, with good drilling stability and fast penetration.

Shaped Gear Profile
It's suitable for competent formations, and can expand the flushing ways and improve the penetration rate.

Face Discharge
It's suitable for sedimentary and metamorphic formations, or the formations including with lots of mineral powders, this design can protect the core from flushing and improve the getting effciency of core samples.








Dimensions of Core Bits:

A-Gauge Core Bits
SizeOutside diameterInside diameter
inchmminchmm
AQ1.880/1.87047.75/47.501.607/1.05727.10/26.85
AQ-RSG1.895/1.88548.13/47.881.067/1.05727.10/26.85
AWG,AX1.880/1.87047.75/47.501.190/1.18030.23/29.97
AWM1.880/1.87047.75/47.501.190/1.18030.23/29.97
AWT1.880/1.87047.75/47.501.286/1.27632.66/32.41
LTK481.880/1.87047.75/47.501.394/1.38435.40/35.15
B-Gauge Core Bits
BQ2.350/2.34059.69/59.441.438/1.42836.52/36.27
BQ-RSG2.365/2.35560.77/59.821.438/1.42836.52/36.27
BQ-2.4002.045/2.39561.09/60.831.438/1.42836.52/36.27
BQ32.350/2.34059.69/59.441.325/1.31533.65/33.40
BWG,BX2.350/2.34059.69/59.441.660/1.65042.16/41.91
BWM2.350/2.34059.69/59.441.660/1.65042.16/41.91
BWT2.350/2.34059.69/59.441.755/1.74544.58/44.32
LTK602.350/2.34059.69/59.441.742/1.73244.25/44.00
TBW2.350/2.34059.69/59.441.785/1.77545.34/45.09
N-Gauge Core Bits
NQ2.970/2.96075.44/75.191.880/1.87047.75/47.50
NQ-RSG2.985/2.97575.82/75.571.880/1.87047.75/47.50
NQ-3.0323.037/3.02777.14/76.891.880/1.87047.75/47.50
NQ22.970/2.96075.44/75.192.000/1.99050.80/50.55
NQ2-RSG2.985/2.97575.82/75.572.000/1.99050.80/50.55
NQ3,NQTT2.970/2.96075.44/75.191.780/1.77045.21/44.96
NQ3-RSG2.985/2.97575.82/75.571.780/1.77045.21/44.96
NQ3-3.0323.037/3.02777.14/76.891.780/1.77045.21/44.96
LMLC2.970/2.96075.44/75.192.052/2.04252.12/51.87
NWG, NX2.970/2.96075.44/75.192.160/2.15054.86/54.61
NWM2.970/2.96075.44/75.192.160/2.15054.86/54.61
NWT2.970/2.96075.44/75.192.318/2.30858.87/58.62
TNW2.970/2.96075.44/75.192.394/2.38460.80/60.55
H-Gauge Core Bits
HQ3.770/3.75595.76/95.382.505/2.49563.63/63.38
HQ-RSG3.790/3.75596.27/95.892.505/2.49563.63/63.38
HQ-3.8303.840/3.82597.54/97.162.505/2.49563.63/63.38
HQ-3.8953.897/3.88298.98/98.602.505/2.49563.63/63.38
HQ3, HQTT3.770/3.75595.76/95.382.411/2.40161.24/60.99
HQ3-RSG3.790/3.75596.27/95.892.411/2.40161.24/60.99
HQ3-3.8303.840/3.82597.54/97.162.411/2.40161.24/60.99
HQ3-3.8953.897/3.88298.98/98.602.411/2.40161.24/60.99
HMLC3.897/3.88298.98/98.602.505/2.49563.63/63.38
HWF-Long3.912/3.89799.36/98.983.005/2.99576.33/76.08
HWF-Short3.897/3.88298.98/98.603.005/2.99576.33/76.08
HWG, HX3.897/3.88298.98/98.603.005/2.99576.33/76.08
HWM3.897/3.88298.98/98.603.005/2.99576.33/76.08
HWT3.897/3.88298.98/98.603.192/3.18281.08/8082
P-Gauge Core Bits
PQ4.815/4.795122.30/121.803.350/3.34085.09/84.84
PQ34.815/4.795122.30/121.803.275/3.26583.18/82.93
PWF-Long4.755/4.740120.78/120.403.635/3.62092.33/91.95
PWF-Short4.735/4.715120.27/119.763.635/3.62092.33/91.95
S-Gauge Core Bits
SWF-Long5.755/5.740146.18/145.804.447/4.432112.95/112.57
SWF-Short5.735/5.715145.67/145.164.447/4.432112.95/112.57
U-Gauge Core Bits
UWF-Long6.880/6.860174.75/174.245.515/5.495140.08/139.57
UWF-Short6.855/6.825174.12/173.365.515/5.495140.08/139.57
Z-Gauge Core Bits
ZWF-Long7.880/7.860200.15/199.646.515/6.495165.48/164.97
ZWF-Short7.855/7.825199.52/198.766.515/6.495165.48/164.97
T, TT, T2 & TB Series Metric Core Bits
T361.422/1.41236.12/35.870.859/0.84921.82/21.57
TT461.818/1.80846.18/45.921.394/1.38435.40/35.15
T2-461.818/1.80846.18/45.921.253/1.24331.82/31.57
TB562.22056.301.64041.70
TT562.210/2.20056.13/55.881.788/1.77845.41/45.16
T2-562.210/2.20056.13/55.881.647/1.63741.83/41.58
T2-662.603/2.59366.12/65.872.040/2.03051.81/51.56
T2-762.997/2.98776.12/75.872.434/2.42461.82/61.57
T2-76 Coreline2.997/2.98776.12/75.872.288/2.27858.12/57.87
T2-863.391/3.38186.13/85.882.828/2.81871.83/71.58
T2-86 Coreline3.391/3.38186.13/85.882.682/2.67268.13/67.88
T2-1013.981/3.971101.12/100.873.300/3.29083.82/83.57
T2-101 Coreline3.971/3.971101.12/100.873.155/3.14580.13/79.88
T6 Series Metric Core Bits
T6-762.997/2.98776.12/75.872.249/2.23957.12/56.87
T6-863.391/3.38186.13/85.882.643/2.63367.13/66.88
T6-1013.981/3.971101.12/100.873.115/3.10579.12/78.87
T6-1164.575/4.560116.20/115.823.667/3.65793.14/92.89
T6-1315.165/5.150131.19/130.814.257/4.247108.13/107.88
T6-1465.755/5.740146.18/145.84.847/4.837123.11/122.86
T6S Series Metric Core Bits
T6S-763.009/2.99976.43/76.181.883/1.87347.83/47.58
T6S-863.403/3.39386.43/86.182.277/2.26757.83/57.58
T6S-1013.993/3.983101.43/101.182.828/2.81871.83/71.58
T6S-1164.586/4.571116.48/116.103.379/3.36985.83/85.58
T6S-1315.177/5.162131.48/131.103.970/3.960100.83/100.58
T6S-1465.767/5.752146.48/146.104.560/4.550115.83/115.58
B Series (ISO3552-1) Metric Core Bits
B361.422/1.41236.12/35.870.859/0.84921.82/21.57
B461.818/1.80846.18/45.921.253/1.24331.82/31.57
B562.210/2.20056.13/55.881.647/1.63741.83/41.58
B662.603/2.59366.12/65.872.040/2.03051.81/51.56
B762.997/2.98776.12/75.872.434/2.42461.82/61.57
B863.391/3.38186.13/85.882.828/2.81871.83/71.58
B1013.981/3.971101.12/100.873.418/3.40886.82/86.57
B1164.575/4.560116.20/115.824.009/3.999101.83/101.58
B1315.165/5.150131.19/130.814.599/4.589116.82/116.57
B1465.755/5.740146.18/145.805.190/5.180131.82/131.57

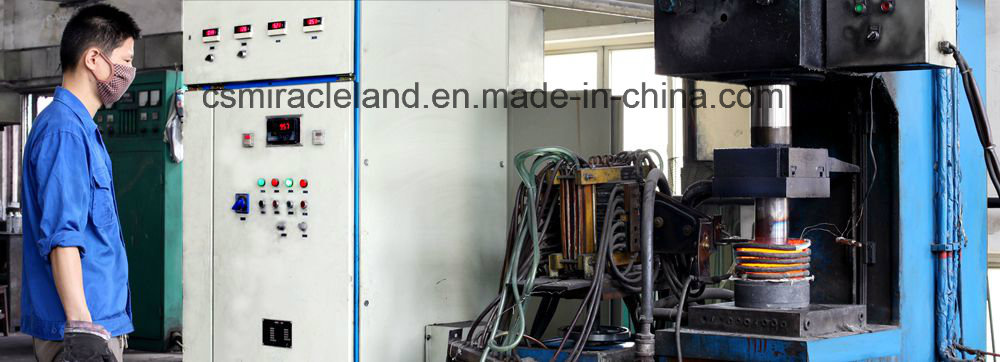

Changsha Miracleland Import & Export Co., Ltd is a professional and credible international trading company. We are specialized in manufacturing & exporting many types of drilling rigs, the products including drilling rigs for mining exploration, water well drilling rigs, coal mine drilling rigs, borehole drilling rigs, geological drilling machine, construction drilling rigs, core drilling rig, drill accessories & diamond core bits series and etc. We can supply the truck mounted drilling rigs, wheel mounted drilling rigs, crawler drilling rigs and so on to meet all customers' Requirements. We exported many type of drilling rigs to many countries with the best quality and good service, which gained an excellent credibility among all the clients. We can supply drilling rigs with the drill depth from 50 meters and 3000 meters.

Our company also manufactured and exported all kind of drilling accessories, such as core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshot, drill rods, casing tubes and other drilling tools.

We are quite pleased to enter into business cooperation with your firm on the basis of equality and mutual benefit, we believe that we shall be, by joint efforts, able to promote friendship as well as business.

As a successful and whole-hearted dedication team for customers, we shall provide satisfactory products and the most advantageous price for you.

If you had any requirements for any type drilling rigs & drilling tools, kindly please feel free to contact with us, we would be quite pleased to show all the details you asked for.
