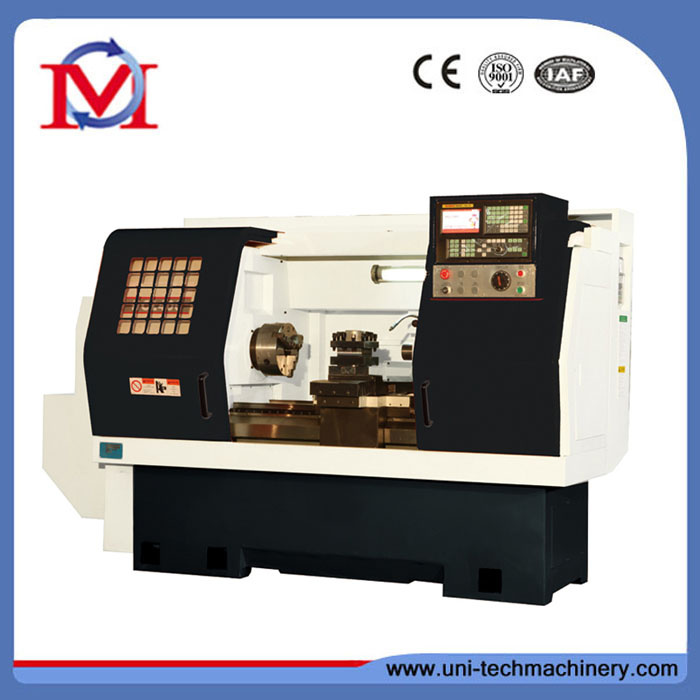

Compact Automatic CNC Lathe with Inclined Bed (HCl400)

Compact Automatic CNC Lathe with Inclined Bed (HCl400)
Price: US $ 15985-20000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HCL400
Size: 2700 1420 1730
Weight: 2150
Item: HCl400
Model: HCl400
Color: White and Black
Max Bar Diam.: 65mm
Coolant Pump: 120W
Spindle Through Hole: 66mm
Processing Accessory: Centre CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision
Type: CNC Lathe
Tool Holder: Many Choices

Product Description

Compact Automatic CNC Lathe With Inclined Bed (HCL400)

Main features:
**One Piece cast iron stand with High rigidity
**Linear guide way imported with fast movement and high accuracy.
**More choice for clamping and tool post
** More convenience chip remove
** Central lubrication
** Full-enclosed cover with perfect water-proof.
**Suitable for big size plate and shaft processing.

Specification:
ITEMHCL400
CapacityMax. swing diametermmΦ440
Max. swing diameter over bedmmΦ200
Max. machining diametermmΦ400
(Disk)
Max. machining lengthmm700
Max. bar through diametermmΦ65
SpindleSpindle boremmΦ66
Spindle nose A2-6
Spindle speedr/min2500
Clamping type manual/pnuematic/hydraulic
TurretTurret type and tool number tool post
OD. Tool sizemm25×25
Boring tool sizemmΦ40
X/Z axisX/Z axis travelmmX:240;Z:800
X/Z axis rapid feedratemm/min15000/20000
MotorSpindle motorKW7.5
X/Z axis motor torqueNm(KW)7//10
(power)
Coolant pumpKW0.12
WeightNet weightkg2150
Sizelength×width×heightmm2700×1420×1730

Standard Accessories
**GSK 980TDc  controller
**Mounting pad
**Wrenches
**Coolant
**Central lubrication system
**Manual 3-jaw chuck 200mm
**4-postion tool post
**Linear guide way
**Manual tail stock
**Electric hand-wheel.
**Encoder.

Optional Accessories:
 ** FANUC 0i mate TD
**6-Position Electric Post.
**Hydraulic chuck with through hole
**Hydraulic collet


Tengzhou Uni-tech machinery Co. Ltd, specially in the range of supplying different machines, machine tools, machinery accessories. With long time exporting machines experience, we can not only supplying our customers stable quality products, but also more excellent service.

Supplying source:

1. As an machinery supplier for many years, we are aware whose quality is acceptable, whose quality is poor, we always can meet our customers requests, precisely. With the long time and deep relationship with the factory, as exporter, we can get better prices, which play a key role in the market competition...Ours development coming from customers growing.

2. We also follow the products developing, always can recommend the newly developed products to our customer to meet the changing market.

3. With the experience, we also can meet customers products improvements, for

Some place modifying, in order to meet exactly customer requests.

Quality Control

We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.

After-sales service

We guarantee that all products could be used with free of defect in one year from the date of purchase. During our guarantee period, all customers enjoy free service of repairing of changing any defective parts. This guarantee does not apply to those defects directly or indirectly due to improperly use and repairs or maintenance.

Customer-service

We can provide customers the fast after-sale service warranty. In order to meet this point,

What your requests, including the spare parts posting requests, quality modifying, price inquiry, delivery time checking, we will try our best to feed back within 24 hours.

CUSTOMER PROFITS IS ALWAYS THE FIRST, AS OWING TO CUSTOMER NEEDING, EXPECTING, INFLUENCE, UNIQUE, WE MUST BE CONSIDERATE, FASTER, FLEXIBLE, THEN WE CAN HAVE BRIGHT FUTURE.

We are engaged in manufacturing and supplying all kinds of metal workings machines, machine tools and accessories, measuring tools… … . With rich experience in exporting and manufacturing, we are always pay more attention to the Fast inquiry replying, Strict quality control, On time delivery time, Quick after-sales-service, also for the best price for our customers, we also have more certificate such as ISO, CE. Hope to take this chance to enter into direct business with you.

*manufacturing and supplying all kinds drlling and milling machine, turret

Milling machine,

*manufacturing all kinds of gap bed lathes and supplying different accessories.

*** manufacturing all kinds of manual metal sheet products
