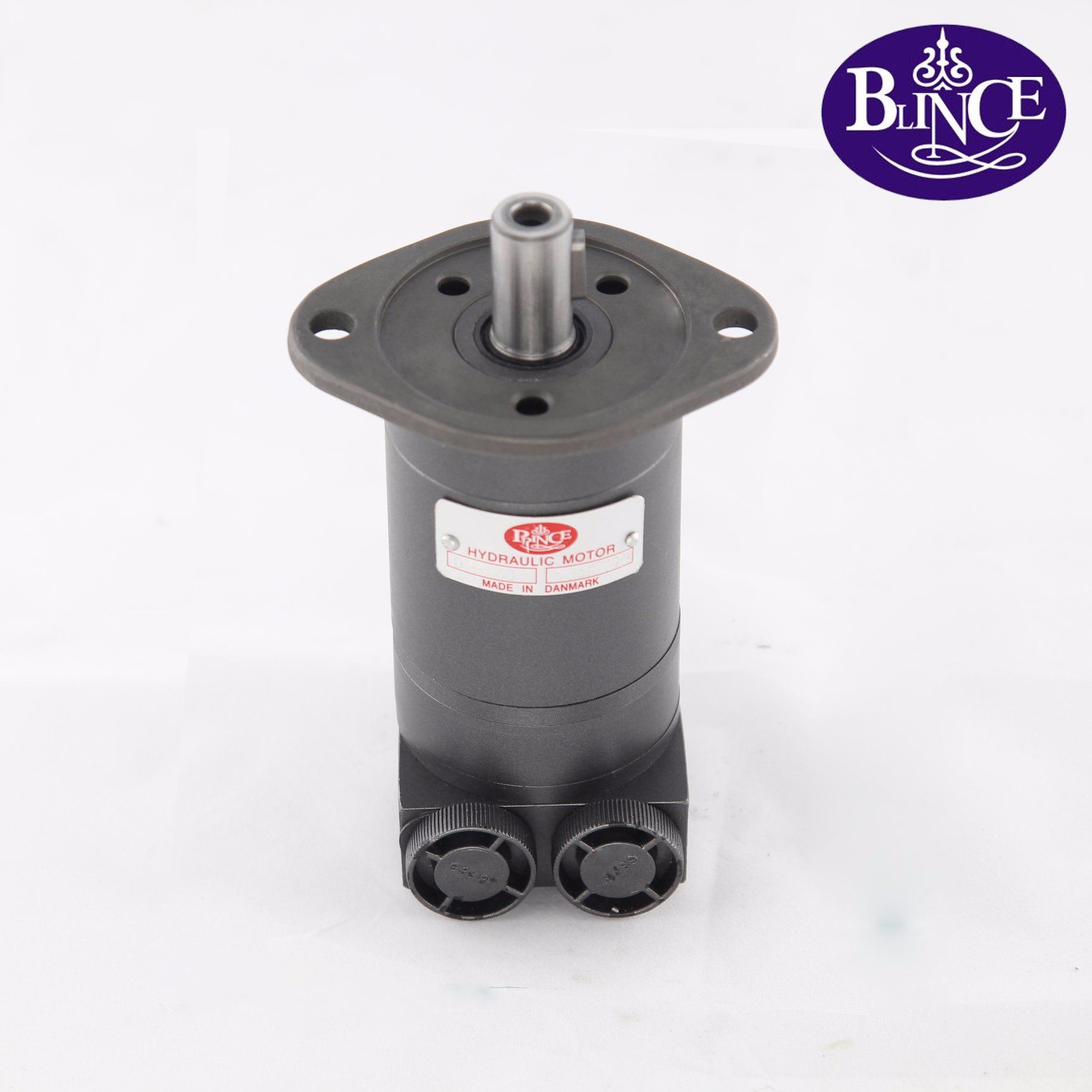

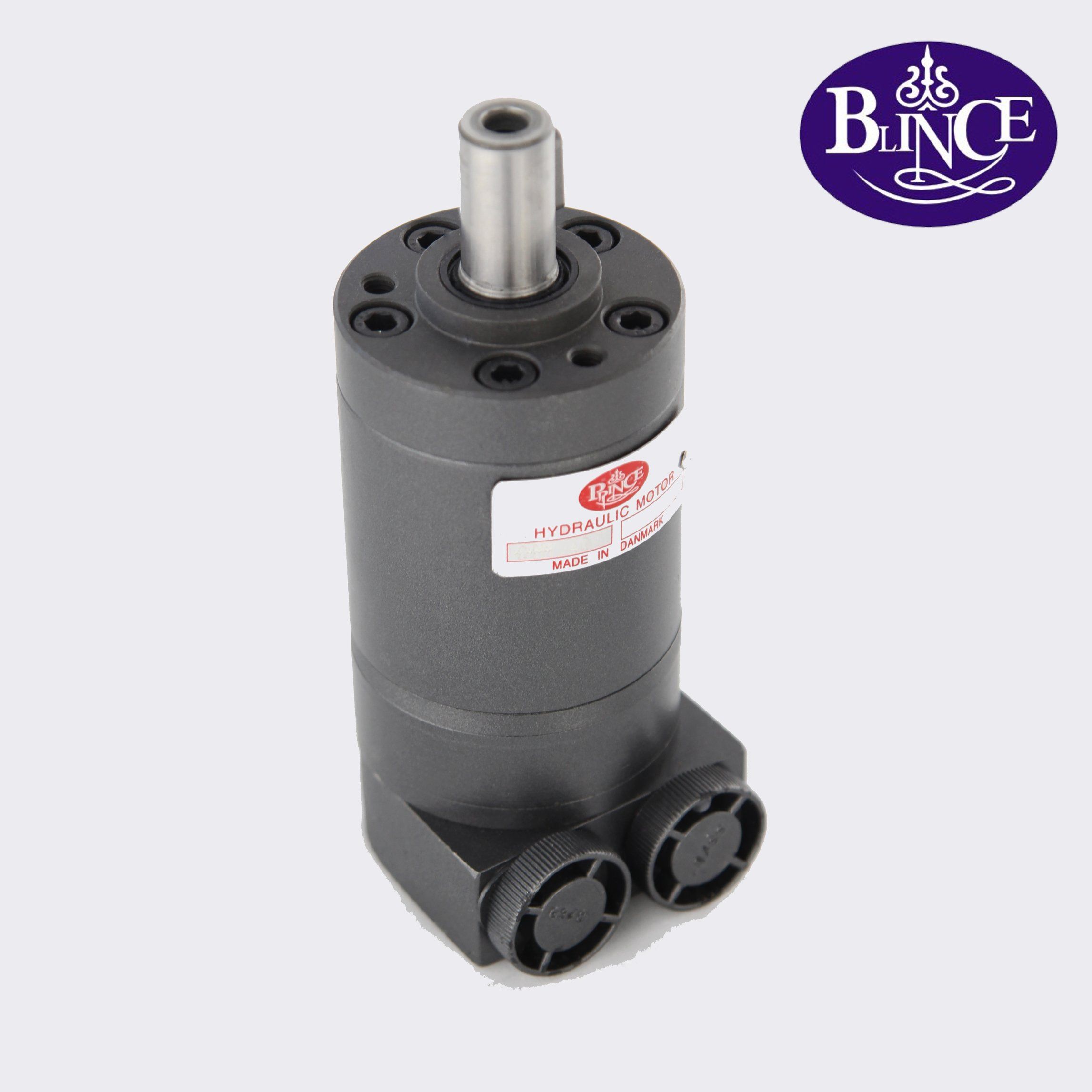

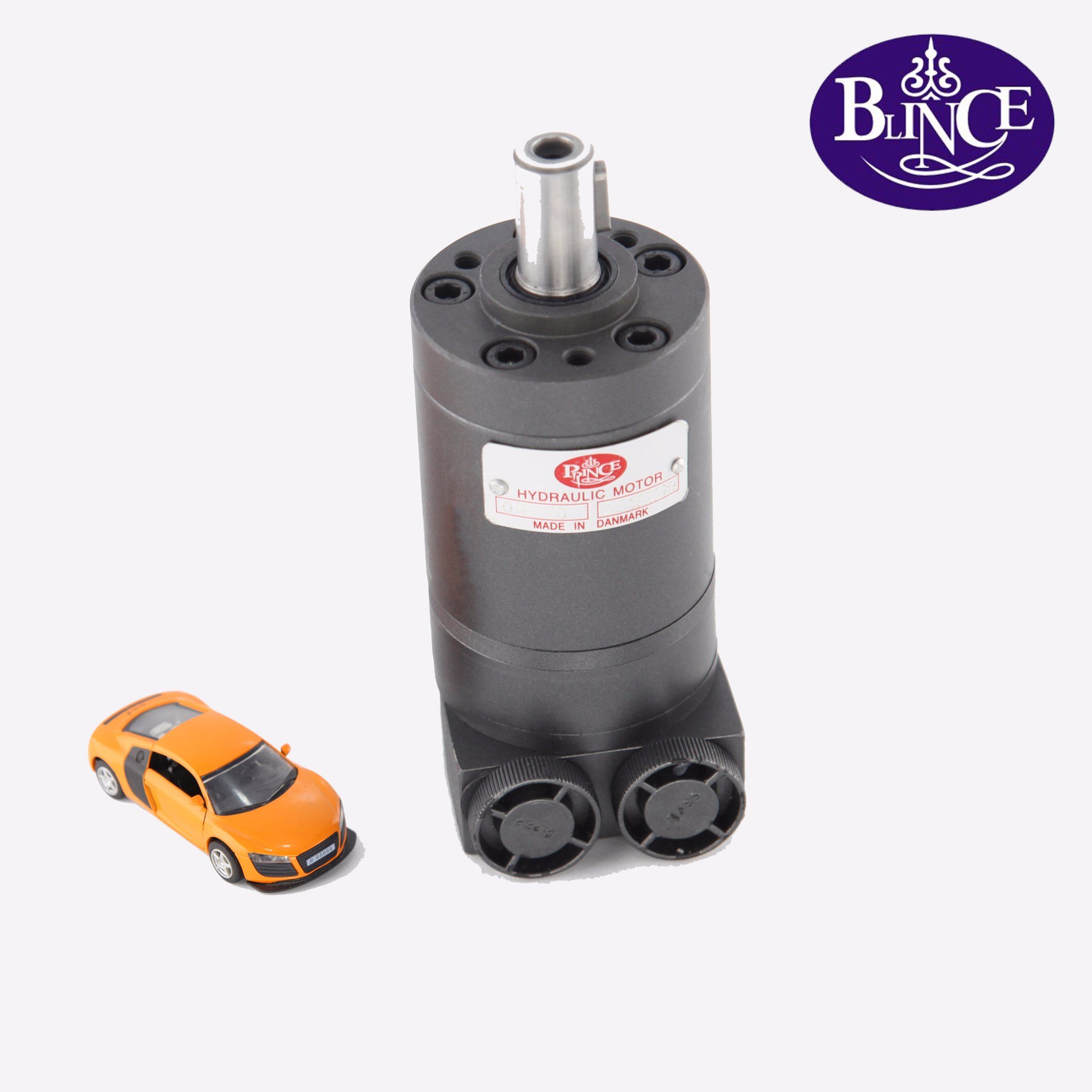

Blince Small Orbit Hydraulic Motor Omm32cc for Underwater Cleaning Machine

Blince Small Orbit Hydraulic Motor Omm32cc for Underwater Cleaning Machine
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: omm
Displacement: 31.6cc
Max.Speed (Cont.): 630rmp
Max.Torque (Cont.): 25nm
Max.Output Power (Cont.): 2.4kw
Max.Operating Pressure(Cont.): 10MPa
Max.Flow (Cont.): 1620L/Min
Max.Weight (Cont.): 2kg
Inlet Pressure (Cont.): 17.5
Length: 114
Port: Botton Port

Product Description

Blince small orbit Hydraulic Motor OMM32cc for underwater cleaning machine

BLINCE OMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.

Characteristic features:
  * Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
  * Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
  * Advanced construction design, high power and low weight.

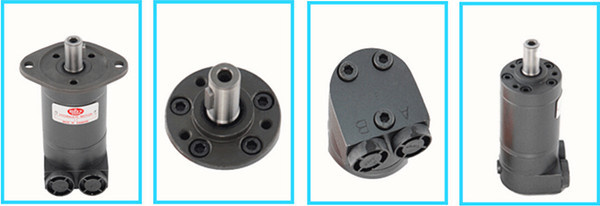

Product show:







Main Specification:
     TypeOMM
 8
OMM
 12.5
OMM
 20
OMM
 32
OMM
 40
OMM
 50
Geometric
displacement (cm³/rev.)

8.2

    12.9

   19.9

   31.6

   39.8

   50.3
       Max.speed
         (rpm)
cont.                  1950                       15501000630500400
int.245019401250800630500
Max. torque
(N.m)
cont.111625404546
int.152335577088
peak2133516482100
Max.output
(kW)
cont.1.82.42.42.42.21.8
int.2.63.23.23.23.23.2
Max. pressure
drop
(MPa)
cont.1010101097
int.141414141414
Peak202020161616
Max.
flow (L/min)
cont.162020202020
int.202525252525
Max.inlet pressure (MPa)cont.17.5
int.22.5
Net Weight  (kg)1.922.12.22.32.4

The Model Parameters of OMM Hydraulic Motors:
* Displacement: 8 / 12.5 / 20 / 32 / 40 / 50
* Flange: 3-M6 Circle-flange, pilotØ 31.5× 5
         3-1/4-28UNF Circle flange, pilot Ø 31.5× 5
         2-Ø 9 Rhomb-flange, pilotØ 63× 2
* Output shaft:
         ShaftØ 16, parallel key 5× 5× 16
         ShaftØ 15.875, parallel key 4.8× 4.8× 19.05
         ShaftØ 16.5, involute B17× 14, DIN5482
* Ports and drain port:
         G3/8, G1/8
         9/16-18UNF, 3/8-24UNF
         End port G3/8, G1/8
         End port 9/16-18UNF, 3/8-24UNF

Blince OMM series motor application areas:
* Construction equipment
* Agricultural equipment
* Material handling & Lifting equipment
* Forestry equipment
* Lawn and turf equipment
* Special purpose
* Machine tools and stationary equipment
* Marine equipment
* Any More

Company information:
       Dongguan Blince Machinery & Electronics Co., Ltd. is a leading manufacturer of hydraulic motor for many years with ISO CE certificate .Our company main product is hydraulic motor like(OMM/OMP/ OMR/ OMH/OMT/OMS/OMV),Radial piston motor (NHM1/2/3 /6/8/11/16/31), hydraulic pump , valve,steering control unit,hydraulic oil cooler,ect. Our product widely used in agricultural machinery,engineering machinery,mining machinery,industrial machinery, aviation and transport machinery ect.

BLINCE OMM HYDRAULIC MOTOR CAN REPLACE FOR:
* Sauer Danfoss OMM series
* Eaton J series(129***)
* White Drive Product WP/155 Series
* White Drive Product WG/275/277/280 Series
* M+S Motor MP/MLHP Series
* Brewin Motor BG Series
* Japen OPN ORB-GS Series
* Any More

WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.

Guarante:
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we  send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

If you don't see the brand or don't know how to choose a model, please contact us and we will help you find the right fit.

  Winnie Tan
   Cellphone:+8613527998635
  Fax: 0086-769-851580786
  Website:www.blince-hydraulic.com


Thanks for reading and hope you have a good day!

Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid m...MoreEstablished in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30, 000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Blince main product is orbit motor like (OMM/OMP/OMR/OMH/OMT/OMS/OMV), Radial Piston Motor(NHM 1/2/3/6/8/11/16/31), hydraulic pump (PV2R series, V/VQ series, SQP series) valve and a set of hydraulic system.

Our product widely application for fishing machinery, agricultural machinery, engineering machinery, mining machinery, industrial machinery, aviation and transport machinery et

Blince hydraulic motor Can perfect replace:

Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor

Eaton: J (129-) series, H(101-) series, S(103-) series, T(158-)series, 2000(104-) series, 6000 series orbit motor

White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor

Parker: TE and TG series hydraulic motor
