63HRC Shredder Hammer Tips for Sugar Cane Shredding

63HRC Shredder Hammer Tips for Sugar Cane Shredding
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Application: Sugar Cane Shredding

Product Description

Material

This Bi-metallic wear resistant product, as a combination of high Chromium cast iron (ASTM A532 15/3CrMo, 700BHN - 63HRc) metallurgically bonded to a mild steel backing plate, obtains both very high abrasion resistance and weldability.



Chemical Composition of White Iron

CCrMnMoCuPSiSB,V,Nb
2.5~3.5%15~18%0.5~1.0%0.5~2.5%0.5~1.0%0.02%0.5~1.0%0.02%0.1~0.5%



Mechanical Property of White Iron

1. Tensile Strength: 630 MPa
2. Shearing Strength: 250 MPa
3. Hardness: 63 HRC

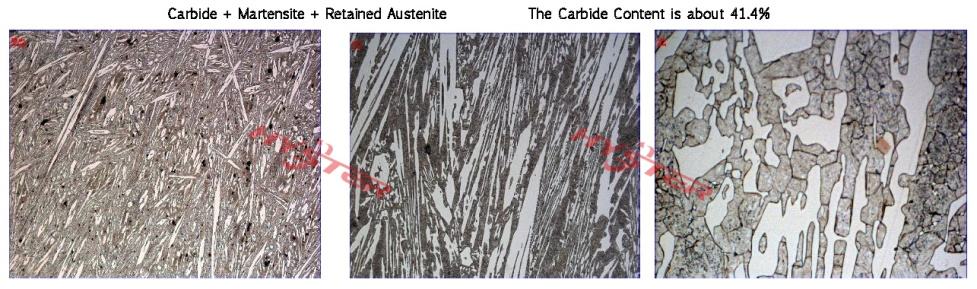

Micro-Structure of White Iron





Product Series

Chocky Bars                               Wear Buttons                         Wear Donuts
Standard Wear Bars                 Micro-Ledges                          Wear Plates
Rock Box Liners                        Skid Wear Bars                        Shaped Wear Bars
Wafer Strips                              Grizzly Bars                              Elbow Wear Bars
Shredder Hammer Tips           Knife Edges                              Overlay Wear Plates



Applications

Wear Pads                 Jaw Crushers                     Chute Linings              Ore Chutes
Crusher Chutes         Tripper Chutes              Flop Gates                   Bucket Liners
Grizzly Bars                Lip Protectors               Screen Plates              Vibratory Feeders
Floor Liners                Loaders                         Wear Aprons               Knife Inserts
Crusher Bars              Run Out Rolls               Dump Hoppers           Crusher Hoppers

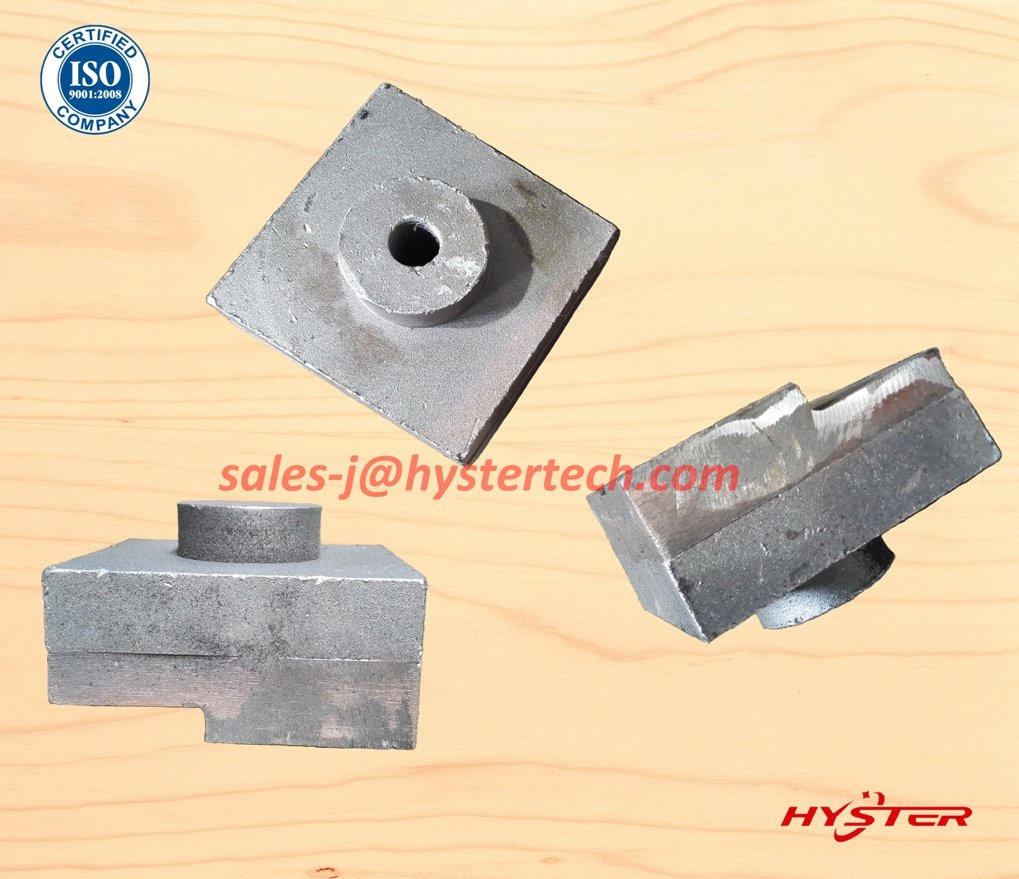

Specifications of Shredder Hammer Tips

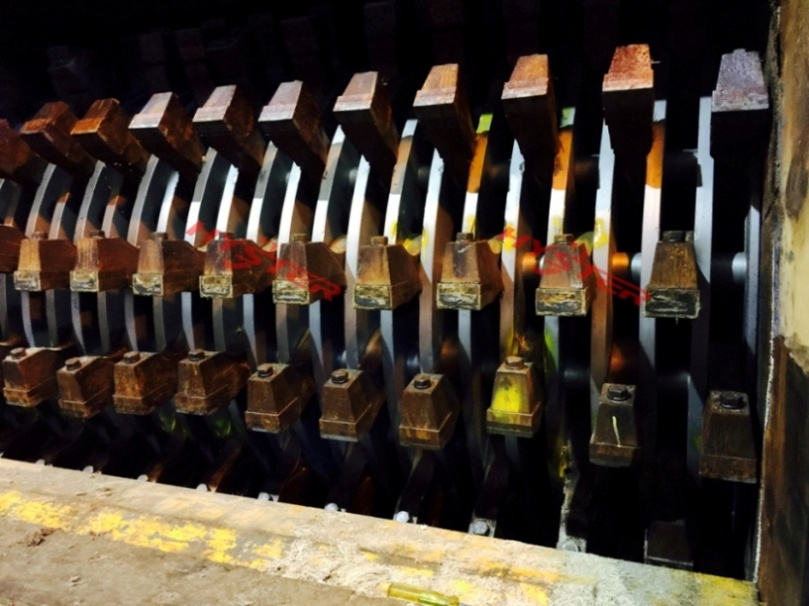

Shredder hammer tips can be used in sugar or coal industry to do crushing and shredding performance. Overall wear life is enhanced by its excellent impact & abrasion resistance.

Notes: The standard size of F is 7/8"-14UNF. Customized thread dimension is available as per required.

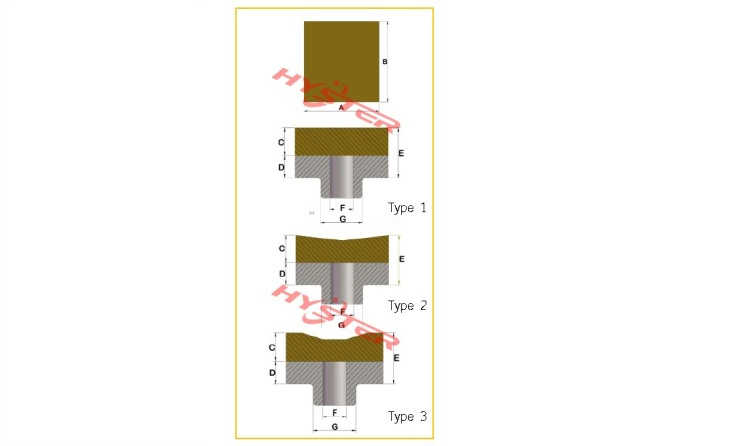

TypeItem No.Size
 (mm)
Dimension (mm)N.W.
(kg)
ABCDE
1HC1 90-9090×90×4590902520452.9
HC1 90-5090×50×4590502520451.6
HC1 90-5490×54×6690544818662.5
HC1 50-5050×50×3850502018380.7
HC1 80-8080×80×4580802520452.4
HC1 100-100100×100×451001002520453.6
HC1 64-6464×64×4064642020401.2
HC1 80-5680×56×4580562520451.6
2HC2 90-9090×90×5090903020503.0
HC2 80-5680×56×5080563020501.8
3HC3 90-9090×90×5090903020503.0
HC3 90-5090×50×5590503520551.8
HC3 90-5690×56×5590563520551.9



Hunan Hyster Material Technology Co., LTD.

Founded in 1995, Hyster is a professional manufacturer & exporter of Bi-metallic Wear Blocks & Plates, Wear Pipes, Chocky Bars, Wear Buttons (white iron vacuum brazed onto mild steel, 63HRC/700BHN), Chromium Carbide Overlay Wear Plates, Ni-Hard Castings/Plates, Tungsten Carbide Castings for Mining, Quarrying, and other heavy industries.




Hunan Hyster Material Technology Co., Ltd., formerly name is hyper casting parts Co., Ltd., is an independent international supply, design and engineering company, in operation since 1995, we specializes in high quality of wear products.

Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.

Some of our products and services:

--Wear plates, wear liners

--Chocky bars and wear buttons

--Wear blocks, wear bars

--Custom made wear liners

--Bucket repair and protection

--Full Fabrication services

--Sugar mill hammer tips

--Drilling, milling or machining

--Casting/Investment casting

--Fast service and timely delivery

With strict management system and strong technical base, Hyster Corporation is committed to provide high-quality products and services for the fields of Mine and Mining, Quarrying, Electrical power, Cement, Sugar, Aviation, Marine, Railway, Engineering plant and Petroleum machinery industries.

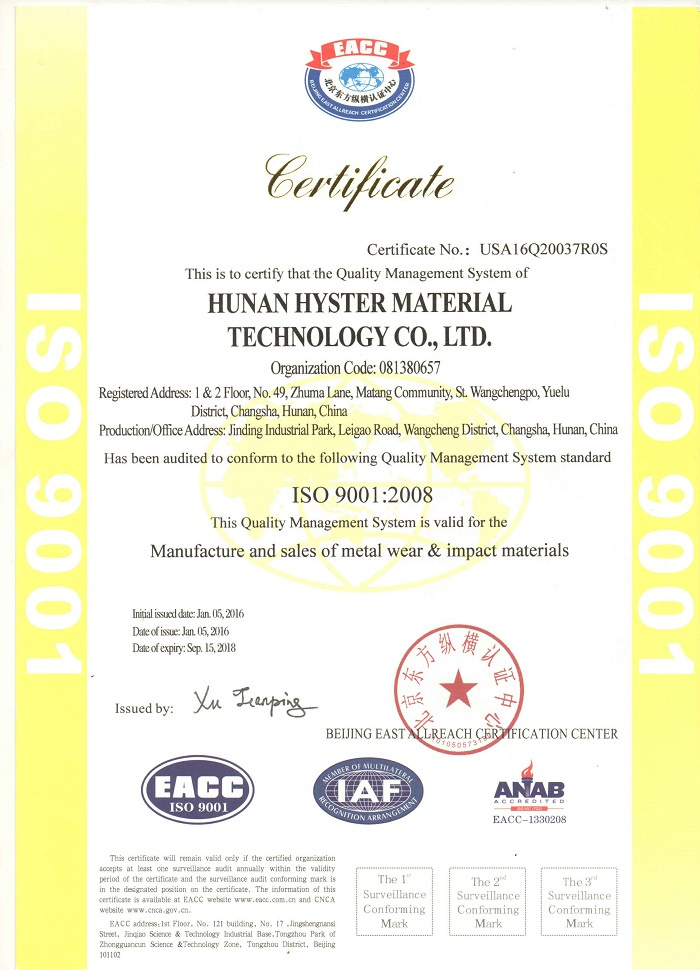

Quality is very important to the development of Hyster Corporation. The company strictly operates according to ISO9001: 2000 quality management system. Over 95% products have been sold to Australia, Canada, South Africa, Brazil, America, Chile, Indonesia, Argentina, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.

Moreover, breaking out of the traditional practice that only provide OEM products, our company has created the new sales concept whose main points are providing solutions, terminal products and customer services, which enables us to better fulfill customer specifications in a positive manner.

Please contact us directly with any questions or inquiries!
