4V/3V100 Solenoid Valve

4V/3V100 Solenoid Valve
Price: US $ 3.5/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union

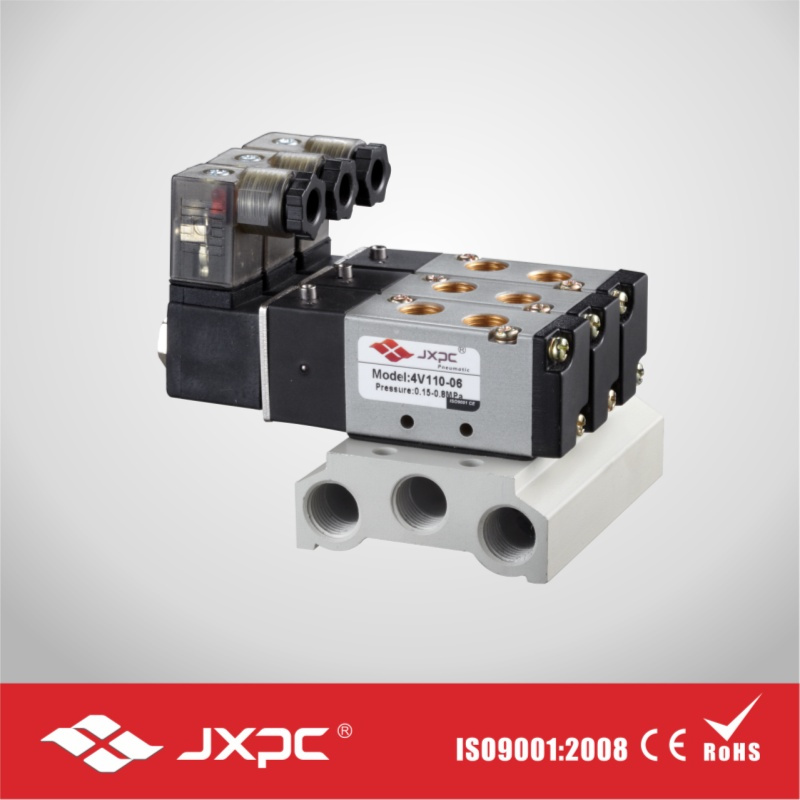

Prod Model: 4V110-06
Effective Sectional Area: 9-12mm2
Acting Type: Inner Guide Type
Port Size: M5,1/8"
Working Medium: Air(40um Filtered)
Wiring Form: Lead Wire or Connector Type
Max.Frequency: 5 Cycle/Second
Insulation & Portection Class: F Class.IP65
Max.Pressure: 1.2MPa

Product Description

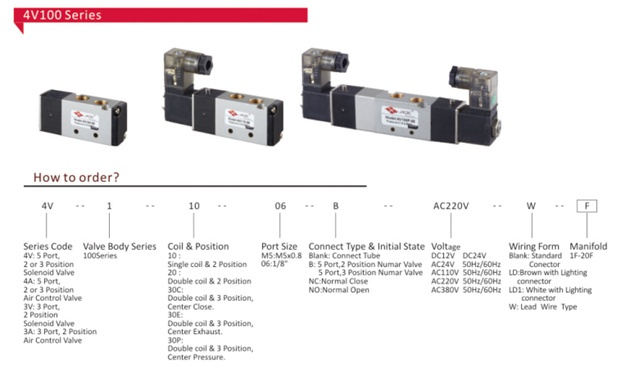

Model4V110-M54V120-M54V130C-M54V130E-M54V130P-M54V110-064V120-064V130C-064V130E-064V130P-06
Position and Way No. 5/25/35/25/3
Effective Sectional Area10mm2(CV=0.56)7mm2(CV=0.40)12mm2(CV=0.67)9mm2(CV=0.5)
 3V110-M53V120-M53A110-M53A120-M53V110-063V120-064A110-063A120-06
Position and Way No. 3/23/2
Effective Sectional Area10mm2(CV=0.56)12mm2(CV=0.67)
Port SizeAir inlet=Air outlet=Exhuast=M5*0.8"Air inlet=Air outlet=Exhuast=G1/8
Working MediumAir(40 um Filtered)
Action TypeInner Guide Type
Working Pressure0.15-0.8MPa
Max.Pressure Resistance1.2MPa
Working Temperature5-50
Voltage Range+- 10%
Power ConsumptionAC:2.8VA DC:2.8W
Activate Time0.05 second

Ningbo new jiaxing Automatic industry Co., Ltd (JXPC) was founded in 1979, is one of leading professional pneumatic mould design, manufacturing and market -oriendted sales mechanism group company, also is the first chairman unit of Ningbo city pneumatic industry society and a director unit of National Pneumatic & Hydraulic seal industry association. Passing 30 years JXPC has developed to international and modern enterprise, enjoying more than 20000m2, workshop with a large sales network, specialized in manufacturing F. R. L combination, solenoid valve, directional valve, pneumatic cylinder, fitting, silencer, PU tube and air gun etc. 100 kinds of series, approximate to 1000 various different pneumatic products. We have adpoted the first -class CNC machining center, high speed automatic lathes, injection molding machine, die-casting machine and other advanced testing machinery.
