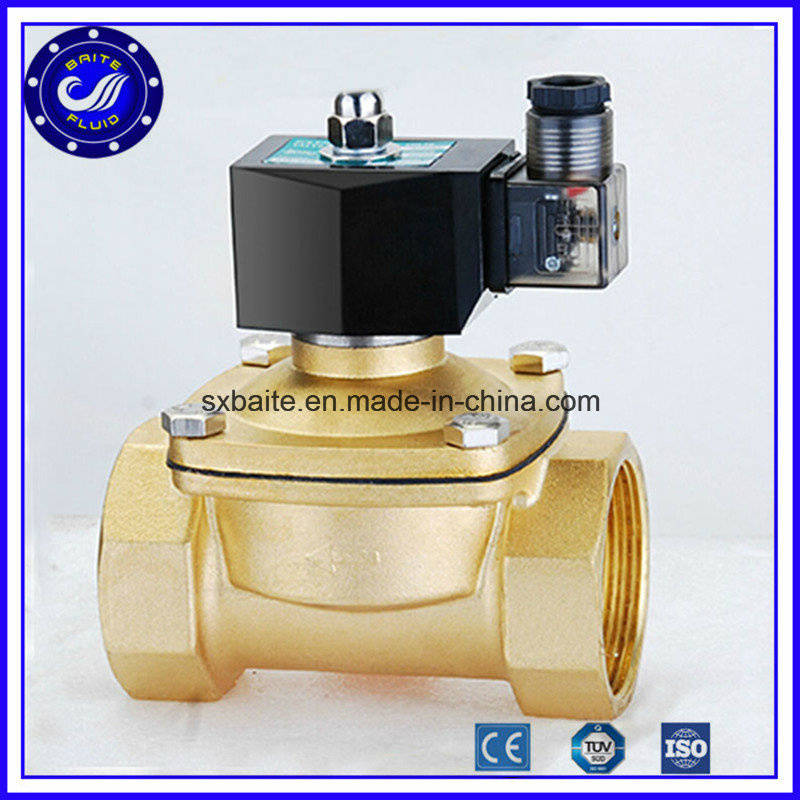

2V High Pressure Air Water Festo Solenoid Valves for Washing Machine Solenoid Valve

2V High Pressure Air Water Festo Solenoid Valves for Washing Machine Solenoid Valve
Price: US $ 1-20/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: 2V solenoid valves BTF-SV-009
Medium: Air, Water, Gas, Oil
Structure: 2/2 Way Direct Acting Diaphragm
Temperature: -5~80c
Fluid Pressure: 0~1.0MPa
Valve Specification: 2V Solenoid Valves
Name: High Pressure Air Water Festo Solenoid Valves
Certification: ISO Ce
Connection Form: Thread
Type: Direct Acting
Valve Structure: Direct Action Diaphragm Structure
Power Supply: AC Solenoid Valve
Application: Household Usage

Product Description

 2v high pressure air water festo solenoid valves for washing machine solenoid valve

Product Features
1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensibility allows it to change direction quickly;
2. It has wide pressure range, including extra high pressure (X), high pressure (H), standard , large volume(L) and extra large volume (T) to choose from;
3. It is compact, small size and light weight. It is easy to install and dismantle.
4. The valve body is made of brass. Its coil has a Heat resistance classification of Class B. The standard seal material is FPM-F. Please contact us if other material are required.
5. The protection class of the coil is IP65 and there is a choice for grommet or terminal electrical entry .

Product specifications
Model2V025-062V025-082V130-102V130-152V250-202V250-25
Orifice Size(mm)2.5mm2.5mm13mm13mm25mm25mm
Port SizeG1/8"G1/4"G3/8"G1/2"G3/4"G1"
CV Value(m3/h)0.230.236.26.22323
Acting TypeDirect ActionPilot Operated
Working MediumAir ,Water,Oil
Control TypeNormal Close Type
Operation Fluid Viscosity20 CST(Below)
Operating Pressure(kgf/cm2)0~80.5~7
Max. Pressure Resistance(kgf/cm2)1210.5
Operating Temperature(°C)-10~80°C
Voltage Range±10%
Protection DegreeF
Power ConsumptionAC: 4.5VA;  DC:3W
InsulationIP65
Material of BodyBrass or AluminumsBrass
Material of Oil SealNBR or VITON
Response Time0.05Second
Product Description

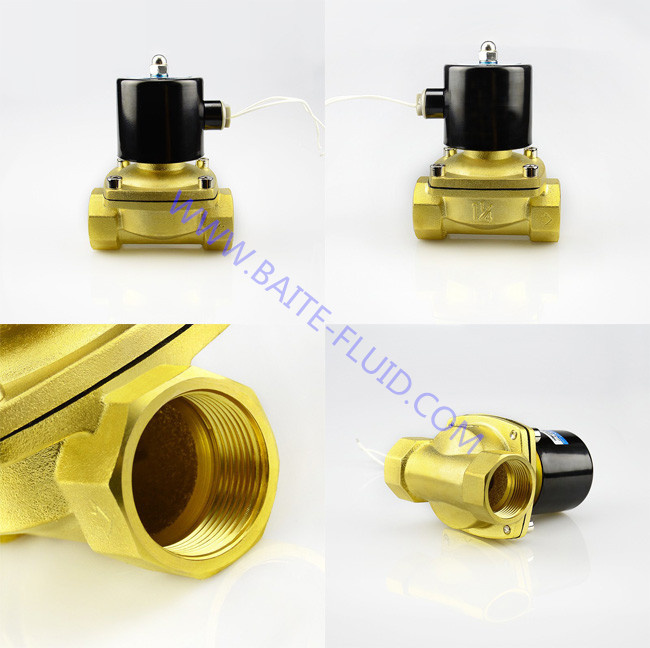

Product Details

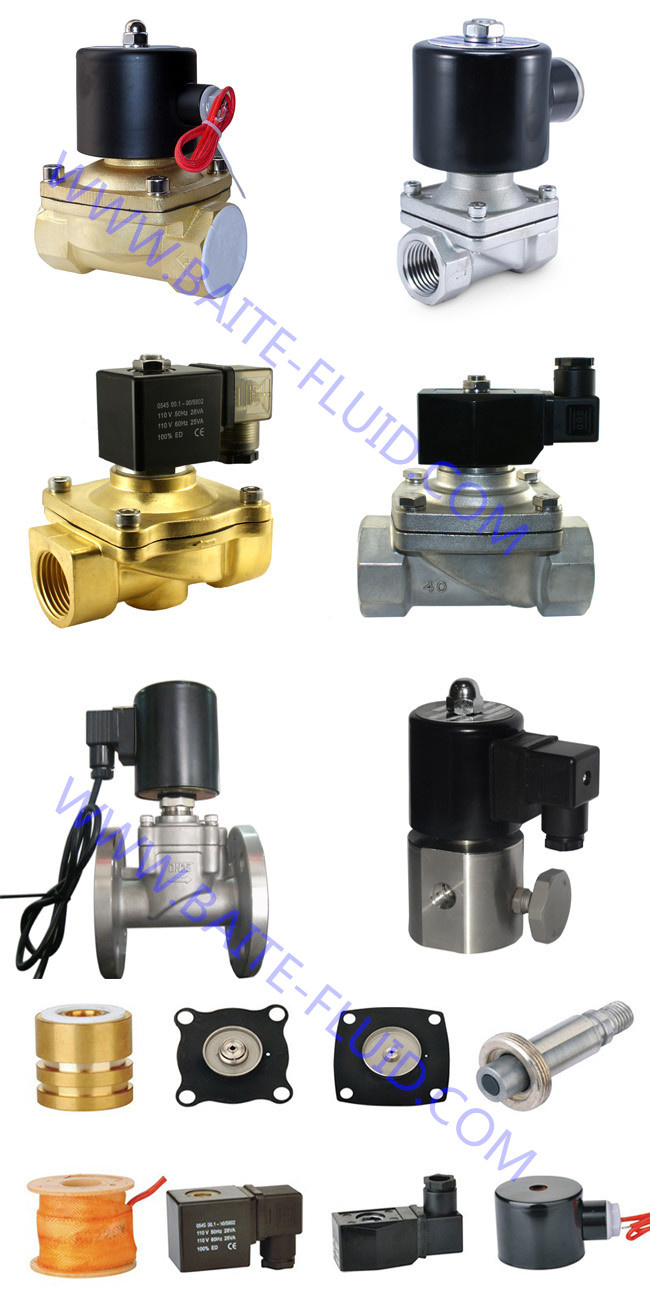

Related Products

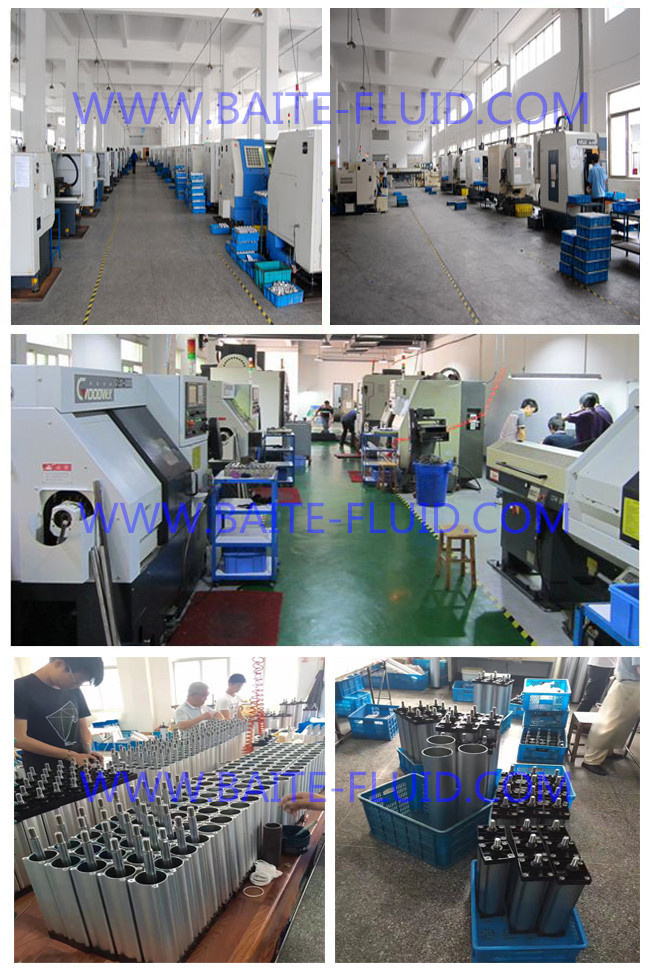

Production Workshop

Quality Assurance
Main Equipment:
automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.
Perfect Inspection Process:
Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.
Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.
Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirements
Contact Us
All products can be customerized designed . We will supply professional service within 24 hours .Welcome to contact .
Shanxi Baite Fluid Machinery Co., Ltd ( Baite-Fluid, BTF ) is one of the professional domestic and foreign manufacturer and trader in forgings, pneumatic products and machined parts. Baite-Fluid is located in Shanxi Province, in north area of China and has been served over 10 years with rich resources of industrial raw material & power supply in a variety of industries. The company has always been to innovation management and technology, keeping the management, technical level and quality level with the world.

Our products are as below:

1. Standard Flanges.

2. Wind tubine tower connecting flange, wind power tower flanges.

3. Forged Steel Rings, seamless steel rolled rings.

4. Various of large forging parts, large size flange for GB, ANSI, DIN, JIS, EN1092-1 standard and OEM drawing accordingly.

4. Pneumatic cylinder, solenoid valve, manifold, FRL and other pneumatic tube and fittings.

5. Machinery parts.

6. Stamped parts.

7. Oil lubricator system.

They are widely used in power plants, petroleum, chemical industry, building materials, water treatment, urban construction and other industries. The products are well solid in domestic and foreign to get the praise from users.

Today our aim is to provide all of our customers with VALUE of the products instead of only low prices. Based on years of experience, fluent communication and professional quality control, we guarantee on time response, on time delivery and cost saving to meet customers' expectation. In a word, you can find one station service here for 24 hours.

Welcome to contact us right away for more information, our team will be always ready to prepare a quotation for your present or future projects.
