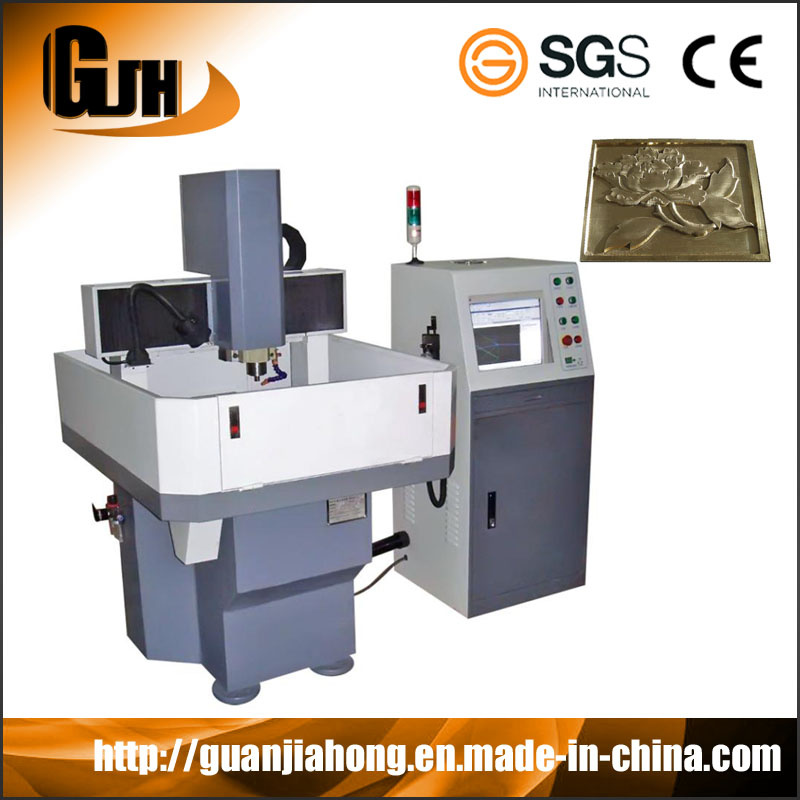

2.2kw Constant Power Spindle, Cast-Iron T-Slot Table, Metal Mold CNC Router

2.2kw Constant Power Spindle, Cast-Iron T-Slot Table, Metal Mold CNC Router
Price: US $ 5000-7000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: DTM-5070
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type: CNC Engraving Machine
Condition: New
Driver: Yako 2811mA
Gantry: Overall Casting

Product Description


GENUINE NC STUDIO HANDLE WHEEL, YAKO STEPPER, 2.2KW SPINDLE, CAST-IRON T-SLOT TABEL, METAL MOLD CNC ROUTER from PROFESSIONAL FACTORY:




1. FEATURE:
1) Model: DTM-5070
2)Overall casting gantry and bed moving ensured the smooth operation and high precision of the machine;
3) Screw transmission and Servo drive also ensured the stability of the machine under the high power;
4) Adopting Genuine NC Studio 53B control system, also with Handle wheel;
5) PMI Linear square rail and Screw imported from Taiwan.



2. PARAMETER:
Mode: DTM-5070
Packing size: 1500x1700x1900mm
Working area: 500mm×700mm
Total power: 4Kw
N.W.: 700Kg



3. CONFIGURATION:
ParameterConfigurationOptional
TransmissionX/Y/Z:Screw
Screw No.PMI2510 (Imported)
Guild railPMI 20
Driving modeStepper Servo
DriverYako 2811Ma Estun
MotorThank 450C Estun
Motor power400W 750W
Working voltage220V/110V
Gantry10MM welded structure
Operation systemNc Studio 53B, with Handle wheel
Spindle2.2KW, Water-cooling, HQD
LubricationAuto
Dust proofXYZ
Table Castings and T-slot



4. TECHNICAL PARAMETER:
NOIndexIndexParameterOptional
1TravelingX axis600mm
  Y axis700mm
  Z axis200mm
2AccuracyWorking accuracy0.02mm
  Reposition accuracy0.02mm
3TransmissionX axisScrew
  Y axisScrew
  Z axisScrew
4SpeedMax Rapid8000mm/min
  Max working speed5000mm/min
5SpindleSpindle power2.2KW
  (Air-cooling)Spindle speed0-24000r/min
6Drive mode Stepper Servo: Estun
7Working voltage AC220/50HZ
8Command language G Code
9Operation system Genuine NC Studio 53B with handle wheel


Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.

After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
