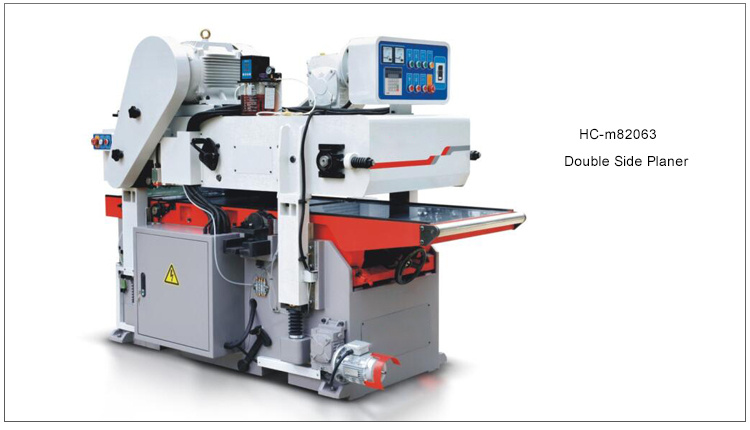

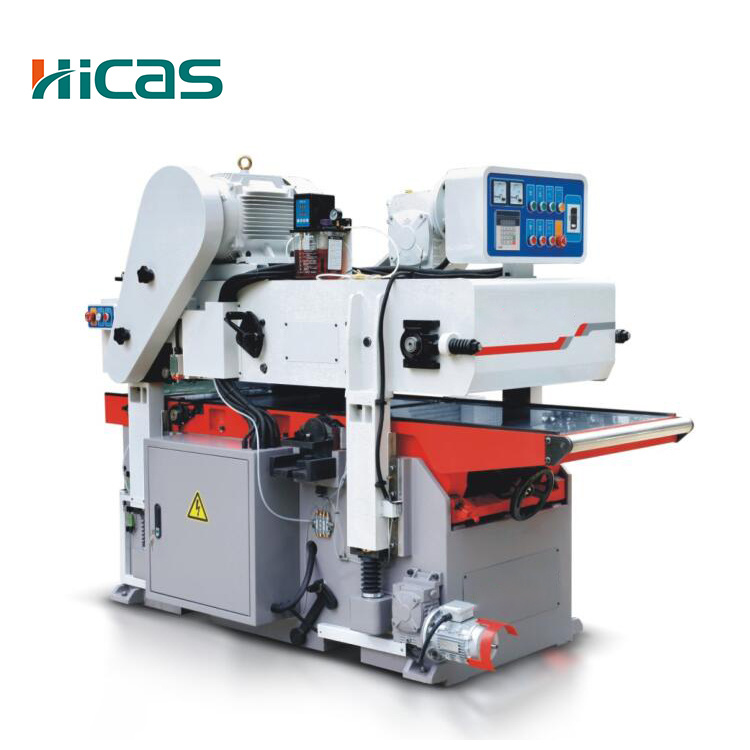

2.2 Feeding Motor Power Double Side Thickness Moulder Planer

2.2 Feeding Motor Power Double Side Thickness Moulder Planer
Price: US $ 10220-11290/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: HC-mb2063
Name: Double Side Planer
Model: Hc-MB2063
Max Working Width: 635mm
Max Working Thickness: 200mm
Min Working Thickness: 15mm
Min Working Length: 320mm
Cutter Knives: 4
Feeding Speed: 5-20m/Min
Top Spindle Power: 11kw
Website: Www.Hicasmachinery.COM
Type: Double-sided Pressure Planer
Certification: ISO

Product Description

2.2 Feeding Motor Power Double Side Thickness Moulder Planer
PRODUCT DISCRIPTION

Model Hc-mb2063
Max.Working Width 635
Max.Working Thickness200
Min.Working Thickness15
Min.Working Length 320
Cutter Knife 4
Flat Knife Spec 635*30*6
Spindle Rotation Rate 5000
Feeding Speed 5-20
Spindle Dia.110
Top Spindle Power11
Bottom Spindle Power 7.5
Feeding Motor Power2.2
Elevating Motor Power0.37
Total Power21.07
Dimension 2700*1268*1680
PRODUCT SHOW

1.Working width 635mm(25'')                                            2.Quick thickness setting means

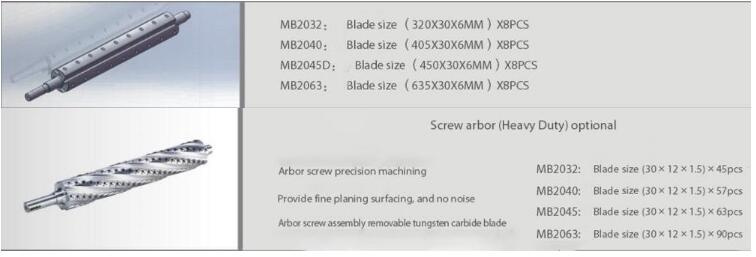

3.Attached numerical controller                                         4.Optional spiral cutter head

5.Lifting column with centralized lubrication system          6.Feeding frequency inverter with frequency motor

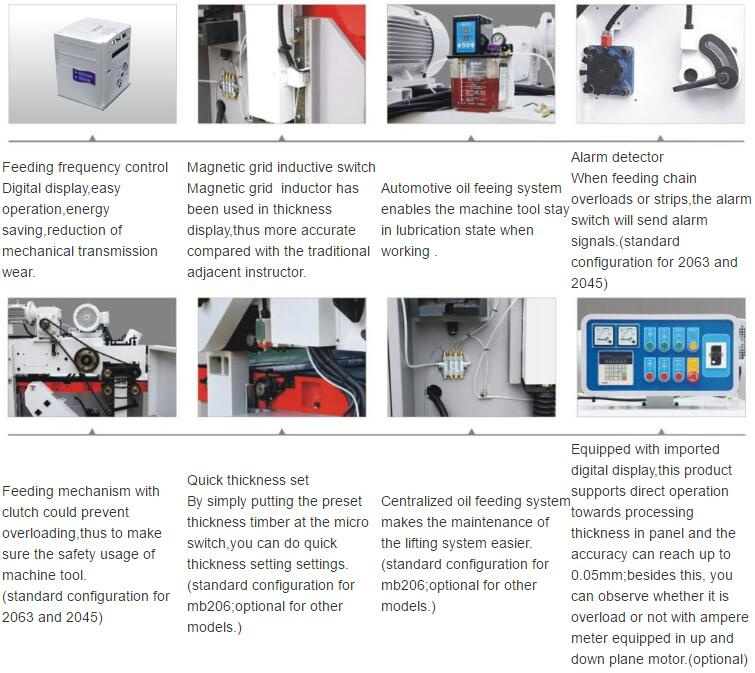

DETAIL SHOW


WHY CHOOSE US

1.Company proflie
Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. Now, we are engaged in offering woodworking machinery,
metal working machinery, packing machinery,
WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well. With years of experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together. Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.
2.Our service

Pre-sale services

1> Provide the free consultation of the equipment

2> Provide the standard device and the flow chart

3> According to the clients' special requirement, we offer the reasonable plan

and free design helping to selecthe equipment.

4> Welcome to visit our factory

Services during the sales

1> Inspect the machine before leaving the factory.

2> Oversea instal and debug the equipment.

3> Train the first-line operator.

After sale services

1> 24 hours online service

2> Provide the VIDEO with Install and debug the equipment

3> Provide technical exchanging
3.FAQ

 List some questions below we think you may want to know, if you have more doubts, we are right here to help you.

1, Can we visit your planer thicknesser factory?
We do welcome our new and regular friends come here to have a visit. Besides, we would send you our relative information to promote a face-to-face meeting if you'd like to.

2, What's your warranty of your products?
Our machines have best quality and its warranty is 1 year.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.

5, What's your warranty?

---In 12 months.

6, What's youe lead time?

---In 15 to 30 working days.

7, What's your delivery term?

---FOB Qingdao China usually, also can be CIF/DDU/DDP to your side if you need.

Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
